2-DIN Kit Ford Focus

2-DIN Kit Ford Focus

Many car manufacturers install their own vehicle-specific radios, which are visually adapted to the center console. Therefore, you need a suitable radio cover to replace a standard DIN or double DIN radio. In addition, there are often also vehicle-specific radio connection cables, antenna adapters, steering wheel remote control adapters, camera adapters and active system adapters required.

Colour black

CAN bus

Connection: 24-pin Ford connector
Connection: AMP display connector > OEM display
Connection: OEM display plug > interface
Connection: OEM AUX > Cinch(m) red/white

Vehicles with steering wheel OK and/or voice function button
Vehicles with OEM display*
Vehicles with CD player under the monitor
Vehicles with SYNC > SYNC function not supported
Vehicles with OEM navigation > Interface function not compatible in some cases

Disable SYNC functions and BT before installation
SYNC emergency call function is deactivated with the BT function

Avoid interference with the vehicle settings on the display:

Turn off the retrofit device
Press the voice dial key for up to 2 seconds to call up the settings menu
Only perform settings as described in the BDA
In case of malfunctions in setting mode:

Reset after CAN bus standstill

Display connection may need to be extended

The following signals are given:

Re-imported vehicles or vehicles with different software may be incompatible in terms of features.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse gear signal
pink: speed signal
green: ground GND handbrake signal

Total output load: 100 mA max.

Current requirement greater than 100 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.

Steering wheel controls

PDC rear supported
Supported alert tones
Vehicle settings supported

*Vehicles without OEM display LFB Ford various vehicles 24Pin without display > Item: 42sfo015

Connection cable for the following radio manufacturers:

• Alpine jacket: 42ctalpinelead
• Parrot 4 pin: 42ctasteroidlead
• Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
• Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
• Clarion connection: 42ctclarion lead
• Garmin Vieoâ€? RV52 Stereo Dock 3 cable: 42ctgarminlead
• JVC 1 cable/jack: 42ctjvclead
• Kenwood 1 cable: 42ctkenwoodlead
• Multilead various devices: 42ctmultilead
• Multilead various devices/Pioneer 2022>: 42ctmultilead3
• Multilead various devices/Pioneer 2022>: 42ctmultilead5
• Panasonic 1 cable: 42ctpanasonic lead
• Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
• Pioneer AVH/DMH/SPH 2022> Loose connection: 42ctpioneerlead2
• Devices with LFB tune-in function: 42ctsmartlead
• Blaupunkt/Kenwood/Sony connection: 42ctsonylead
• XZent/Zenec 1 cable: 42ctzeneclead

Suitable for:

1. Ford Focus 2011-2014

Scope of supply:

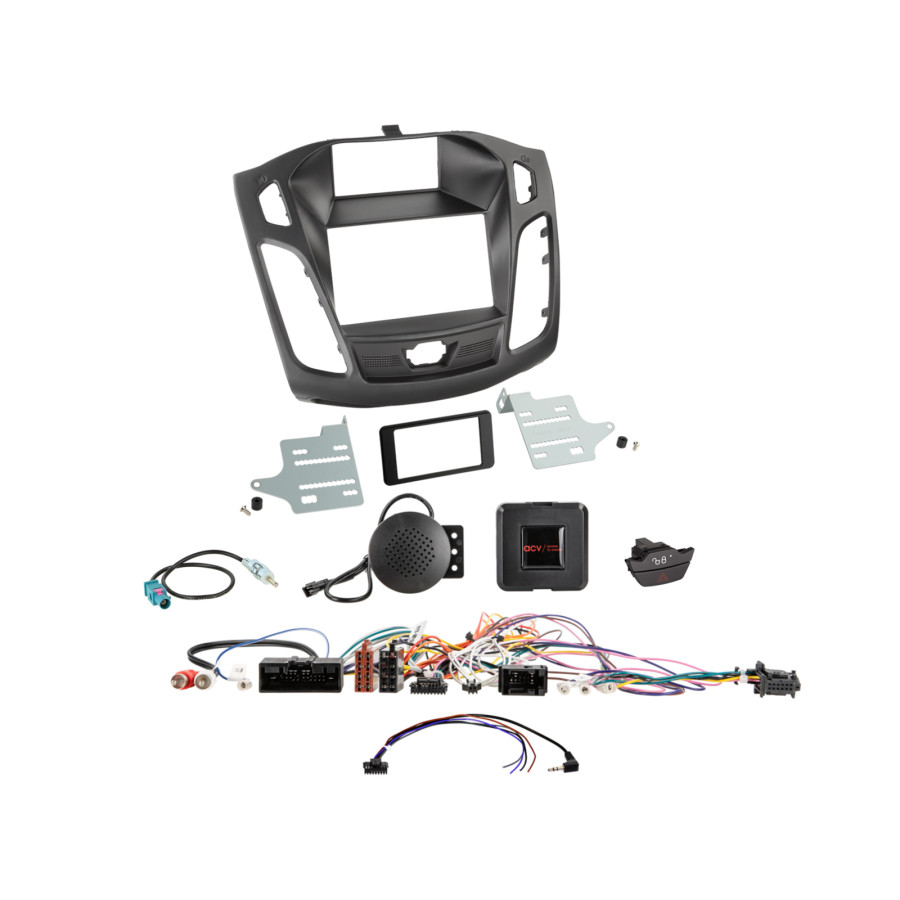

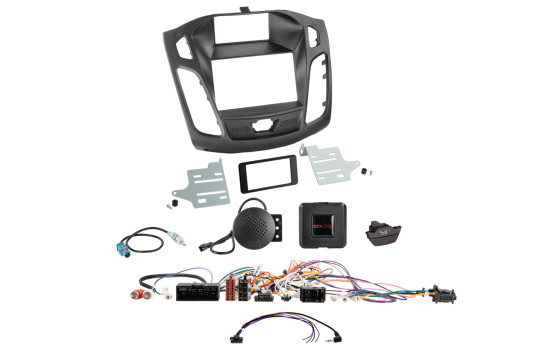

• 2-DIN radio panel Ford Focus (DYB) 03/2011-09/2014 black > Part: 381114-23-1
• LFB Ford various vehicles 24pin/display connector > Part: 42sfo008-0
• LFB cable 42s/acv > Multilead various devices > Article: 42ctmultilead-0
• Antenna adapter Fakra(m)>DIN(m) passive > Article: 1524-01-0
• Ford alarm/central locking switch > Item: 261114-02-0

---

Colour	Black
application	Installation frame
format	2-DIN
Warranty	2 years
