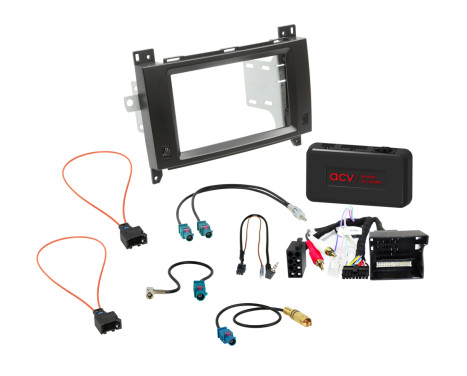

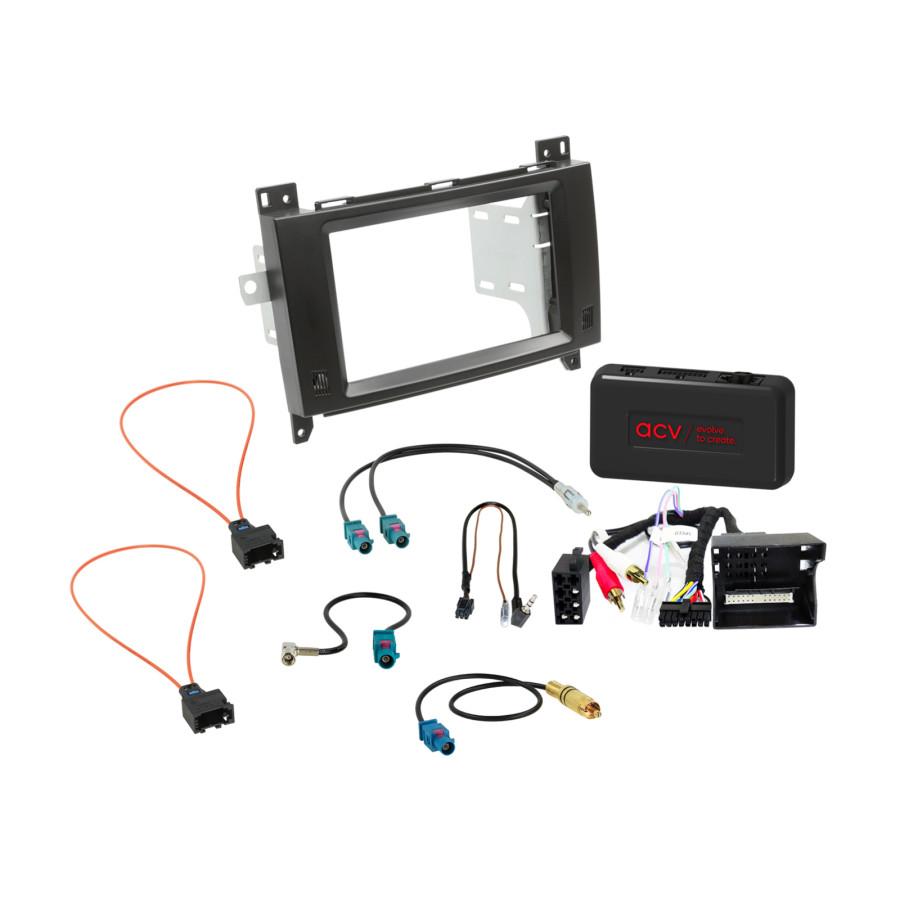

2-DIN Kit Mercedes Vehicles SWI/Analog/Antenna

Radio panel 2-DIN Kit

acv premium quality

Many car manufacturers install their own vehicle-specific radios, which are visually adapted to the center console.

Installation kits contain all the parts needed to replace an OEM device.

Depending on the vehicle's equipment, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included.

Please observe the installation recommendations for the individual components.

In some cases, not all vehicle functions are supported.
For example, Trailer Assist, E Call or other driver assistance systems.

Before installation, check the OEM device and the vehicle menu for various settings.

Depending on the vehicle equipment and the range of functions and software of the retrofit device, individual control functions may be omitted or replaced by other functions.

Compare the adapter plugs shown with those in your vehicle and check whether they match visually and technically.

Also check to see if one of the specified original factory radios was installed in your vehicle.

Before final installation, check that the vehicle functions, vehicle settings and steering wheel remote control are working properly.

Remark:

CAN bus

Connection: 40-pin Quadlock Mercedes plug
Connection: OEM sound system MOST25 > cinch(m) red/white

Vehicles with 2-DIN Audio 20 OEM device
Vehicles with 2-DIN Audio 50 APS Comand NTG2 / NTG2.5 OEM navigation*
Vehicles with MOST25 OEM sound system**

Vehicles without Audio 10 OEM device
Vehicles without Comand 2.0 / 2.5 OEM navigation
Vehicles without D2B OEM sound system

In individual cases, depending on the OEM system and the retrofitted radio, increased noise or a switch-on or switch-off sound may occur.

Cinch(m) > Front preamplifier output aftermarket radio
Fader function not supported

Dipp switch settings for the manufacturer of the retrofitted device (see BDA)

Suitable for the following vehicles:

Mercedes Vito/Viano (W639) 04/2006 - 08/2010
Mercedes Vito/Viano (W639) 09/2010 - 03/2014

**Vehicles with 1-DIN Audio 5 OEM device OEM conversion plate 2-DIN > OEM Mercedes article number: A 639 680 04 07 / Please note the vehicle equipment
** Vehicles with radio preparation Device holder > OEM Mercedes article number: A 639 689 1031

Color: black

Radio display recess: 172 mm x 98.5 mm

Optional:

Storage compartment for 2-DIN radio antennas Screw mounting > Item: 271000-10

Suitable for:
Mercedes Benz Vito 2006-2010 (639)
Mercedes Benz Viano 2010-2014 (639)

---

Colour	Black
application	Ready
Type	2-DIN
Warranty	2 years
