2-DIN Volkswagen Installation KIT Volkswagen Polo/T6.1 2018 - 2022 for MIB II systems and SWI

2 DIN Installation KIT Volkswagen Polo/6.1

(including 2-DIN radio panel, info adapter, multilead and 12V antenna adapter)

With the info adapter, when the original radio is replaced, the visual display of the vehicle functions, such as parking sensors, air conditioning, seat heating.

The vehicle's steering wheel remote control is also supported and is essential to configure the adapter!

Please note that in some cases not all functions are supported. For example Trailer Assist, E Call or other driver assistance systems.

Please check the vehicle menu beforehand for various settings!

Please ensure that the original factory radio specified by us and the adapter plug shown match the vehicle's equipment.

Note: For vehicles with MIB II system
for cars with steering wheel remote control
E-call is not supported
with antenna system with 8.5V phantom power 1524-29

Hint:

Vehicles WITH steering wheel remote control

CAN bus

Connection: 52-pin Quadlock VAG plug

Connection: Fakra(m) > DIN
Vehicles with MIB II system
Devices with max. 70-80MM installation depth at the bottom
L-units with 1-DIN housing above

To access the menu settings, connect the rear view camera output (purple/white).
To make the menu settings visible, connect and configure the rear view camera input (cinch).

Vehicles with MIB II OEM system and Composition Media 8" touchscreen
CAR vehicle settings menu control via steering wheel buttons / no shift bar required

E-Call not supported
E-Call interface for various vehicles E-Call maintenance MAN/Seat/Skoda/VW 52 Pin Quadlock: 1424-28

Not for vehicles
with OEM MOST sound system
with radio pre-installation
without factory pre-equipment (LFB, loudspeaker, radio)

Vehicles with park assist after starting the vehicle the front PDC is displayed.
Vehicles with +8.5V antenna system Antenna adapter Fakra(m)(double) > DIN(m) 8.5V Phantom: 1524-29
Suitable for the following vehicles:

VW Polo 2018 - 2021
VW T6.1 2019 - 2021*

Color: black

The following signals are given:

Inflammation
Relief
Backwards
Speed pulse
Handbrake signal

Steering wheel remote control
Climate control visualization
Visualization optical PDC
CAR menu Vehicle settings

*Adjust fascia with workshop tools

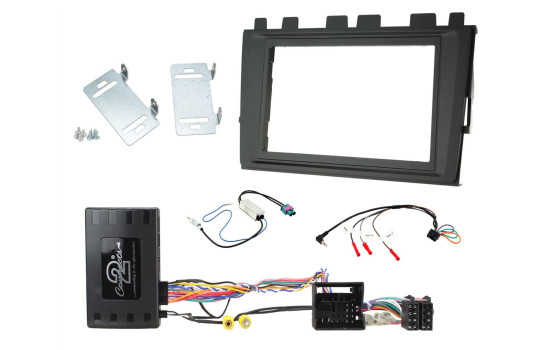

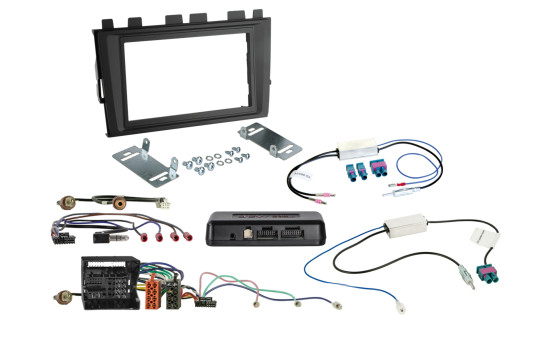

Scope of delivery:

2-DIN RB VW Polo/T 6.1 black: 381320-37-1
Info adapter MAN TGE/Seat/VW 52 Pin Quadlock: 43uvw04
LFB ACV cable > Multilead various devices: 42ctmultilead
Antenna adapter Fakra(m)(double) > DIN(m) 8.5V Phantom: 1524-29
Antenna adapter Fakra(m)(set) > DIN(m) 12V Phantom: 1524-70

Optional:

Adapter reversing camera VW MIB II PQ: 771324-1037

Suitable for:
Volkswagen Polo 2018-2023
Volkswagen T6.1 Transporter 2019-2023

---

Colour	Black
application	Ready
format	2-DIN
Warranty	2 years
