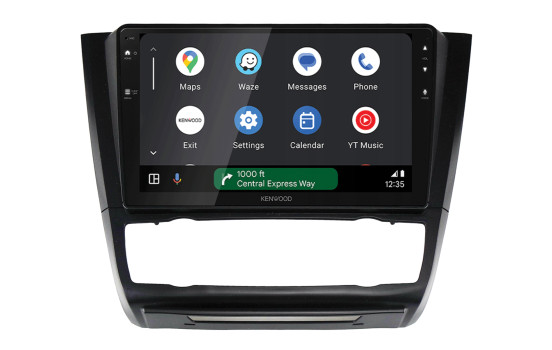

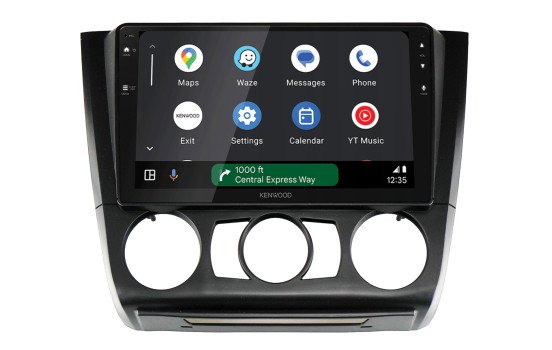

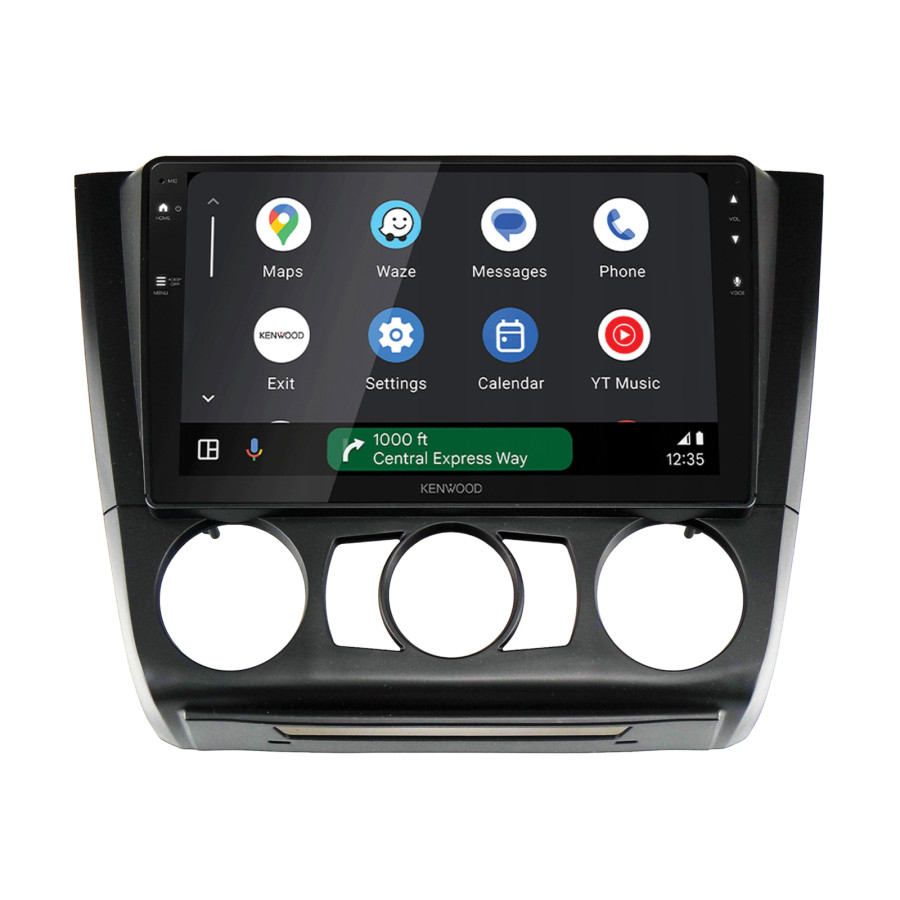

9" Kit BMW 1series 2007-2013 climatronic SWC/antenna/PDC

9" Front panel and HU connector kit SWC BMW.
Many car manufacturers install car-specific head units that match the visual
aspect of the dashboard.
Installation kits contain all components for replacing an OEM head unit.
Depending on the vehicle equipment, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included in the delivery.
Depending on the functionality and software of the retrofit head unit, certain functions may be missing or replaced by other functions.
Consult the installation instructions for the individual components.
The SWC buttons are essential for accessing the Infodapter's configuration menu.
Also check our list of OEM head units and compare the pictured wiring harness connectors with the connectors in your car to ensure that they fit visually and technically.
Please note that in some cases not all features are supported.
For example, Trailer Assist, E Call, or other driver assistance and comfort systems.
Check the vehicle menu for various settings before installation.
Also check the operation of the settings and the vehicle system before the final installation.
For assistance, please contact our support team:
02431-9645-96,
[email protected] .
Remark:
CAN Bus connector :
40-pin Quadlock BMW connector:
OEM SWC > 3.5 mm jack / loose wire connector:
OEM antenna Fakra(m)( > DIN(m) connector:
+12V continuous current yellow terminal 30 battery fuse
vehicles with Business Professional
OEM HU vehicles with Climatronic
vehicles without OEM navigation system
vehicles without iDrive in the center console
vehicles without OEM MOST reinforcement system
PDC / warning signals supported
adjustment work in the radio slot with workshop tools
The required switch strip needs to be moved.

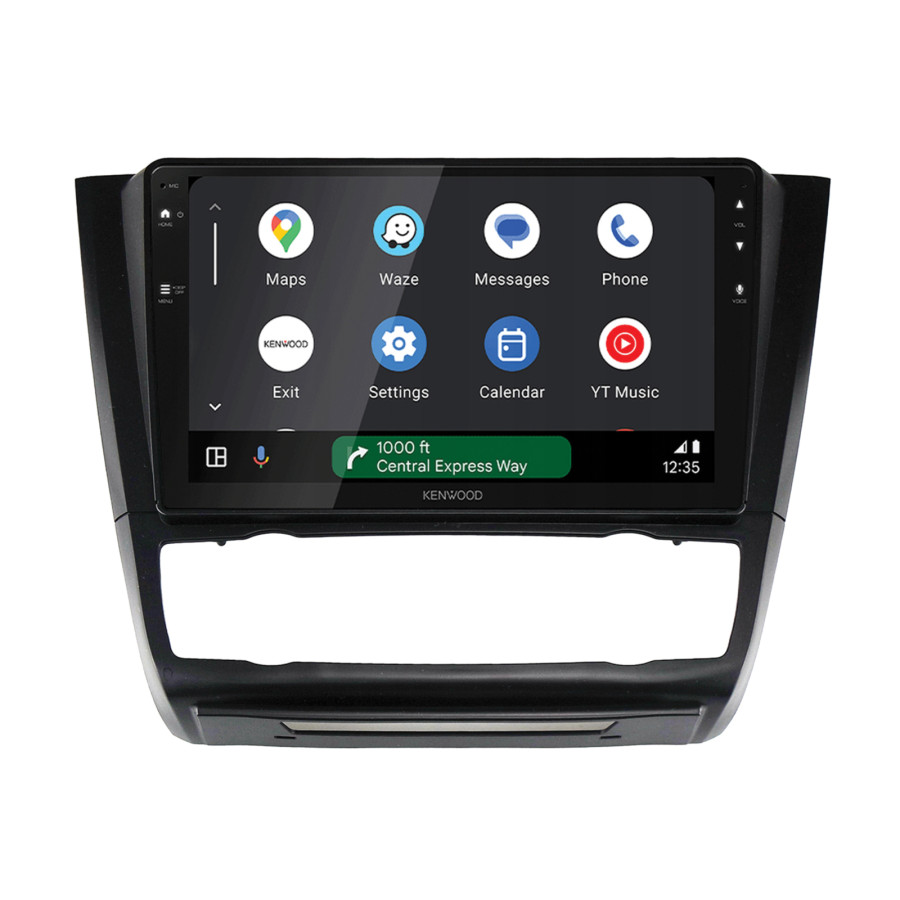

9" short-chassis HU with trapezoidal screen
9" modular HU with trapezoidal screen and silver housing
HU unit with customized accessories
Display unit with custom accessories
dip switch settings for the manufacturer of the retrofit device (consult the manual)
Vehicle application:
BMW 1-series (E81/E87/E82/E88) 10/2007 - 01/2012
BMW 1-series (E82/E88) 03/2011 - 10/2013
Color: black

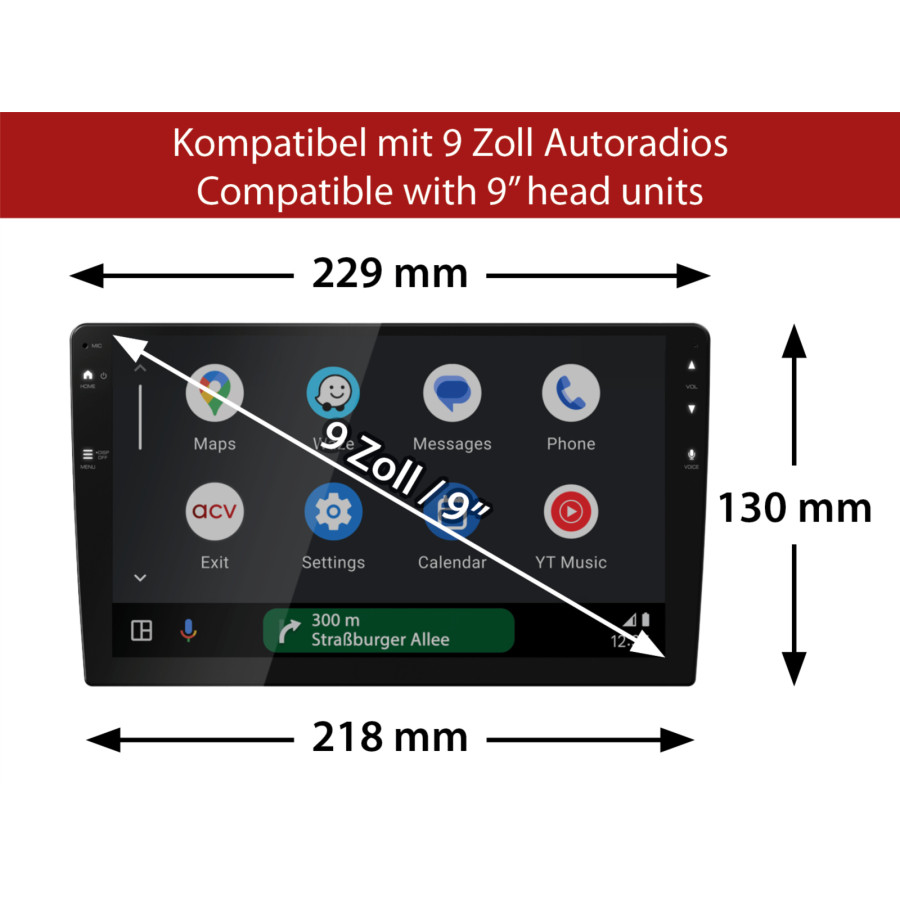

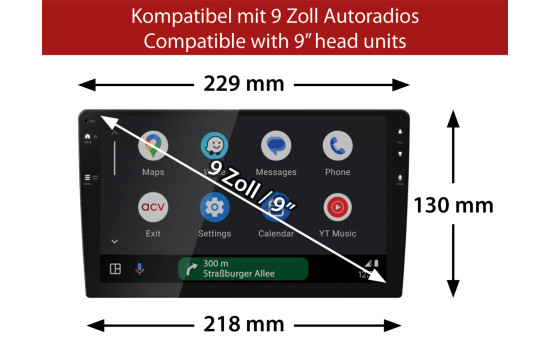

Mounting cutout 7" HU display: 230 mm/220 mm x 130 mm.
The following signals are displayed:
Imported vehicles or vehicles with other software may be incompatible in terms of functions.
Red: +12V ignition terminal 15,
orange: +12V lighting terminal 58 ,
purple/white: +12V reverse signal,
pink: velocity pulse signal.
Green: GND parking brake signal
Output load capacity: 250 mA max.
Current requirement more than 250 mA:
1 relay coil resistor 75 Ohm min.
2 relay coil resistor 150 Ohm min.
SWC
Rear PDC sounds supported
Warning sounds supported

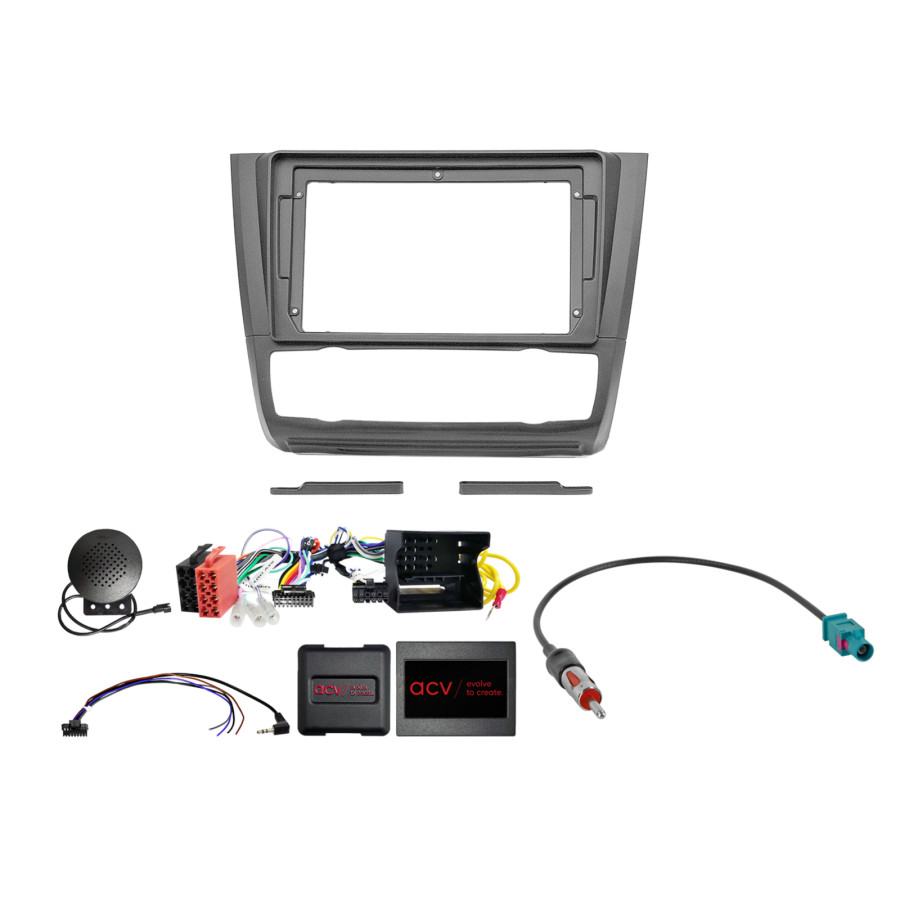

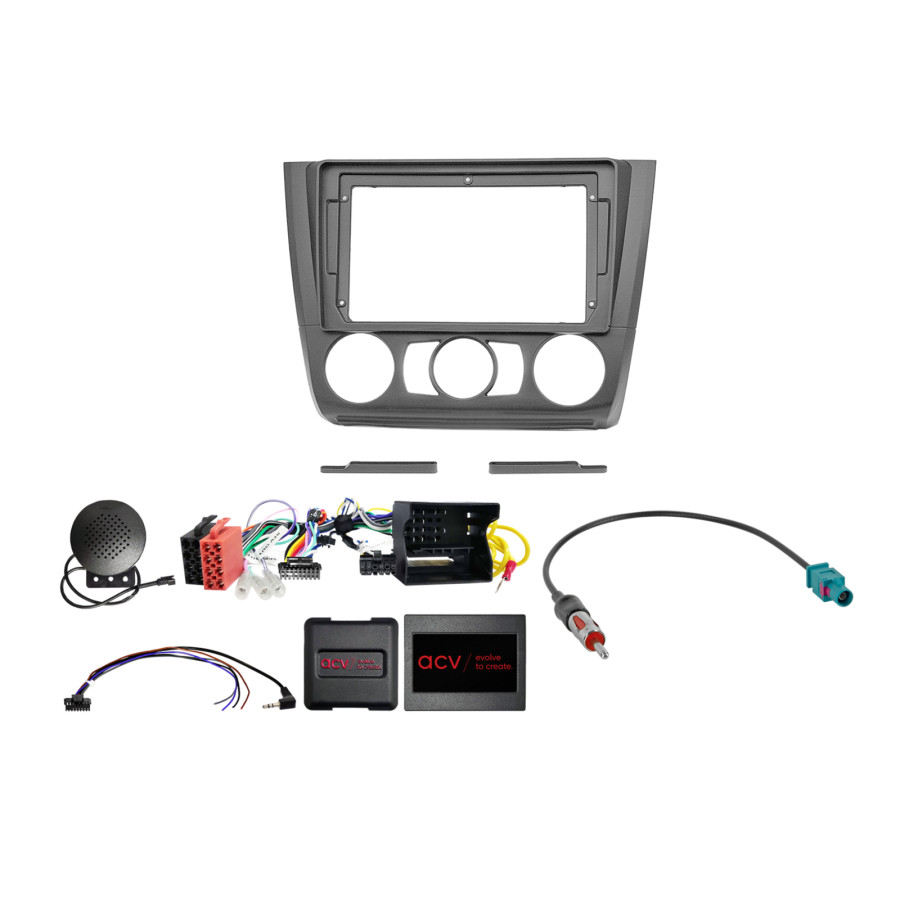

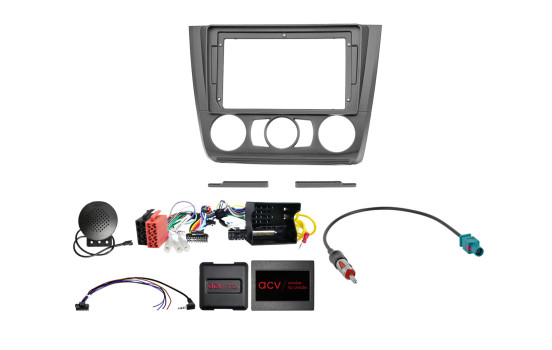

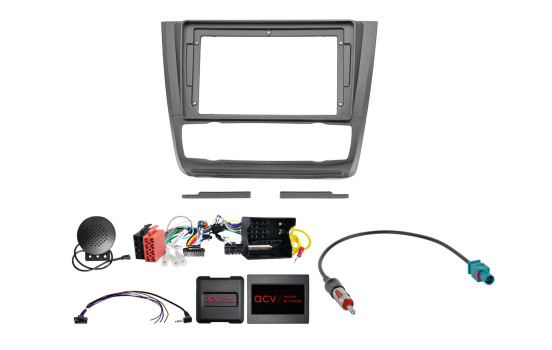

Scope of delivery:

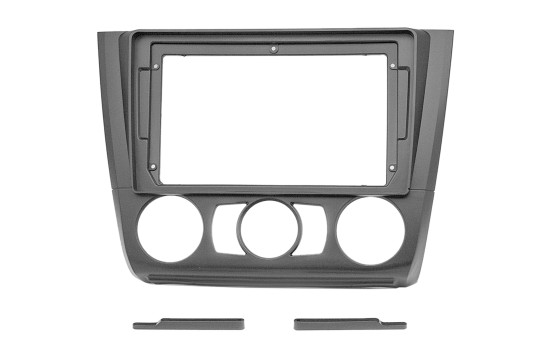

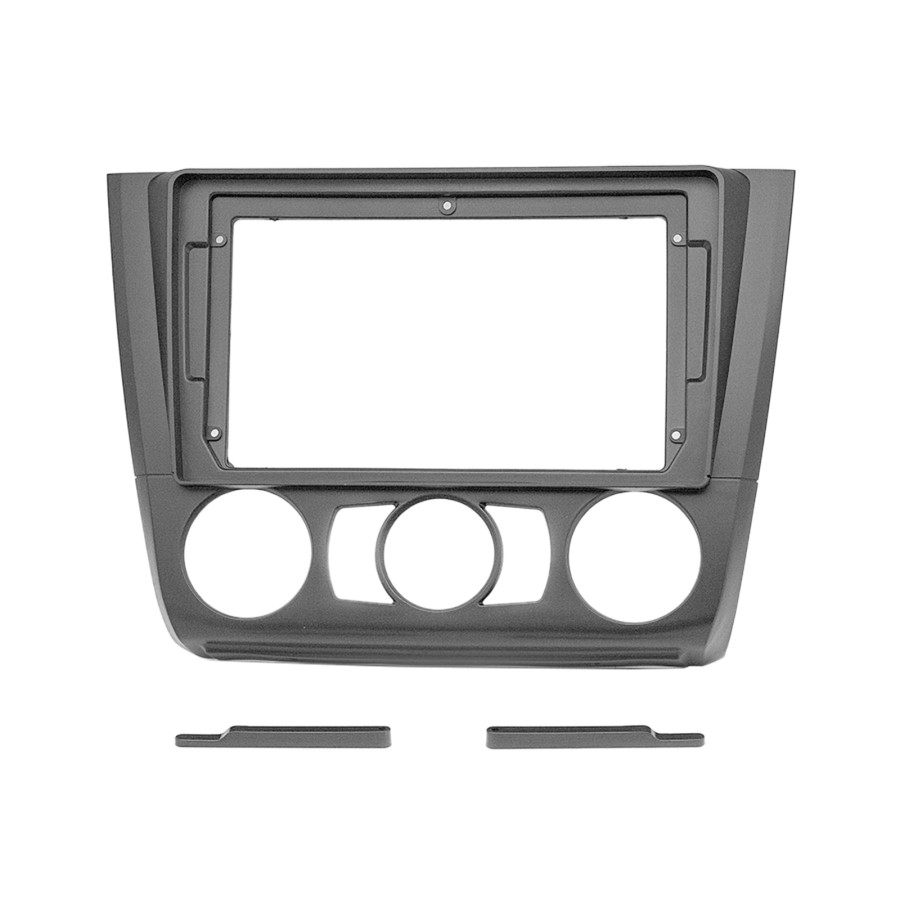

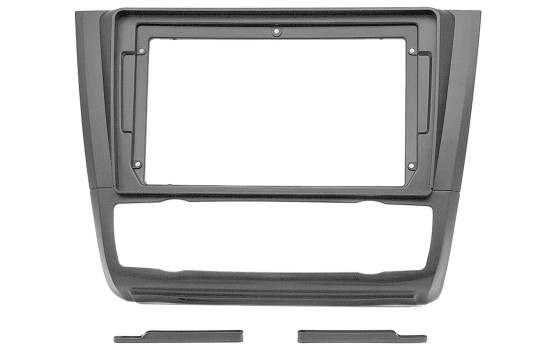

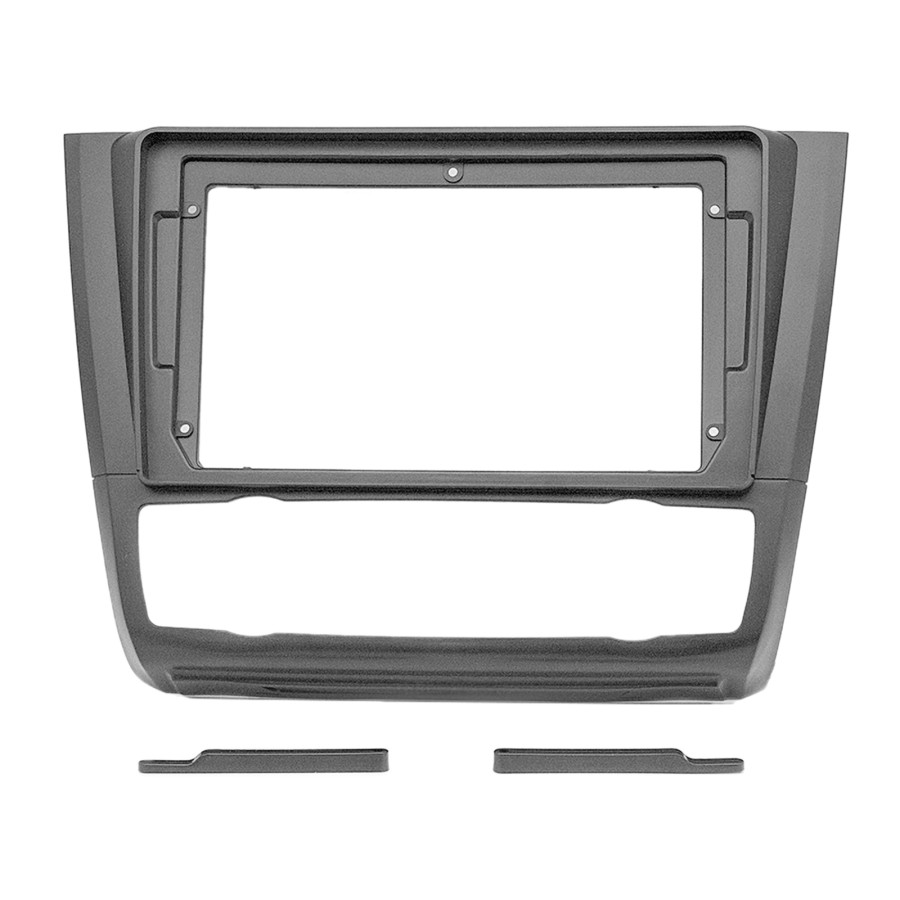

9" dashboard panel BMW 1-series 10/2007-10/2013 climatronic > article: 381023-92-1

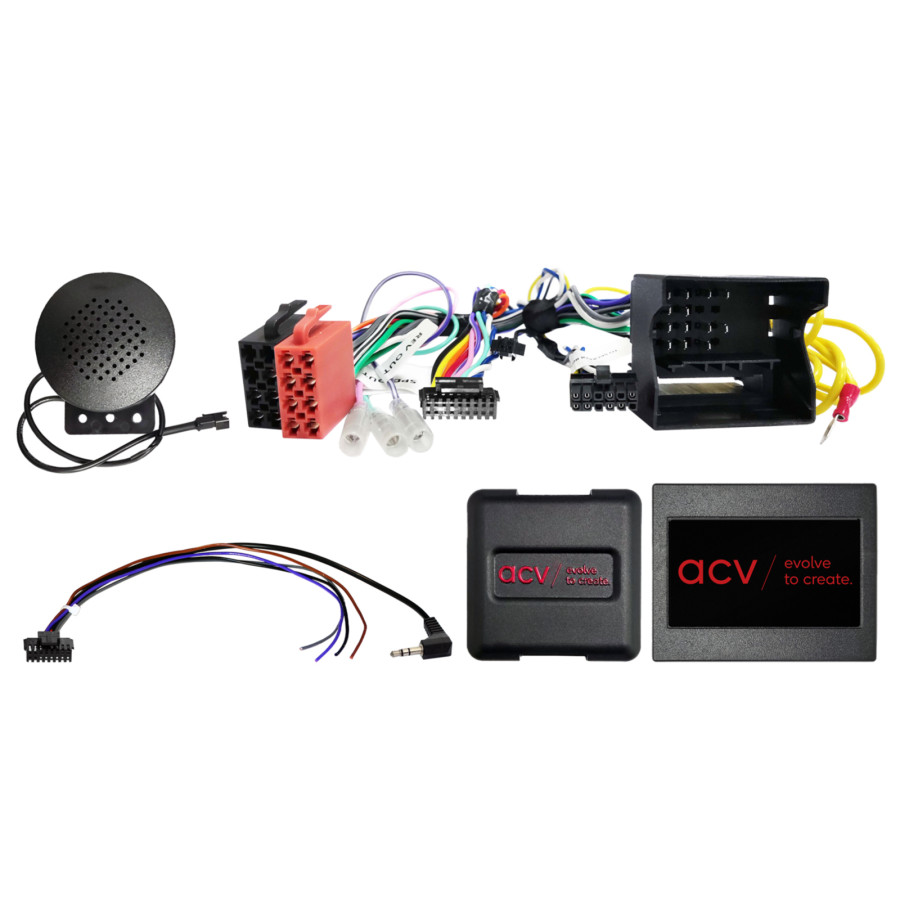

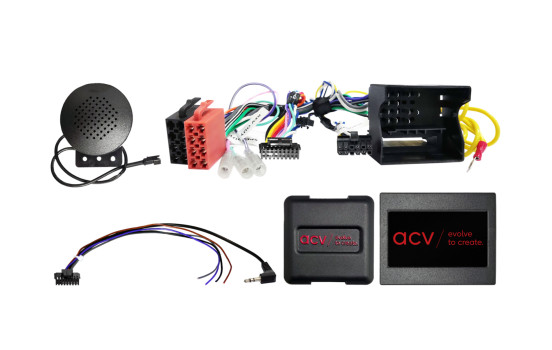

SWC BMW/Mini vehicles 40-pin Multilead Quadlock CAN/PDC bulk > item: 42xbm009-0

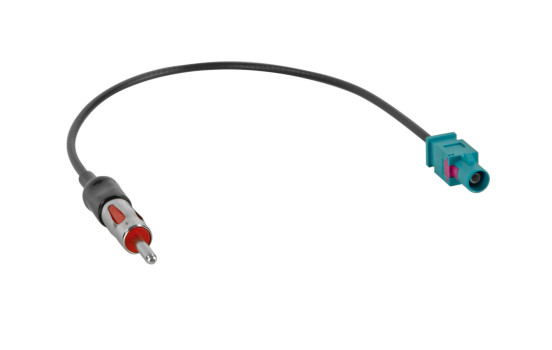

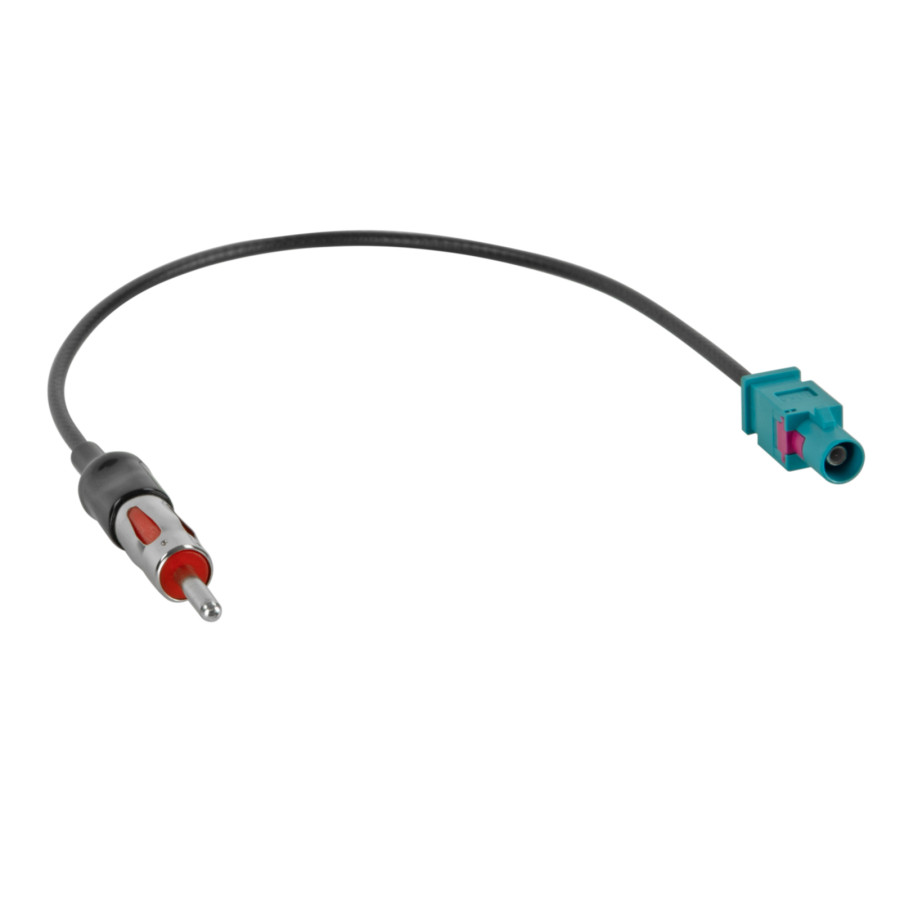

Antenna adapter Fakra Z(m)>DIN(m) passive LEONI/ROKA bulk > article: 1524-01-1-0
Optional:
9" dashboard panel accessory 9" to 10" display adapter > item: 271000-42

Suitable for:
BMW 1 Series 2007-2013 (E8-)

---

Colour	Black
application	Ready
Type	2-DIN
Warranty	2 years
