9" Kit BMW 1series 2007-2013 climatronic SWC/antenna

Cover plate 9" and HU connector kit SWC BMW.

Many car manufacturers install car-specific head units that match the appearance.
image of the dashboard.

Installation kits contain all components for replacing an OEM head unit.

Depending on the vehicle equipment, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included in the delivery.

Depending on the number of functions and the software of the retrofit head unit, certain functions may be missing or replaced by other functions.

Check the installation instructions for the individual components.

Also check our list of OEM head units and compare the pictured wiring harness connectors with the connectors in your car to ensure that they fit visually and technically.

Please note that in some cases not all features are supported.
For example, Trailer Assist, E Call, or other driver assistance and comfort systems.

Check the vehicle menu for various settings before installation.

Also check the operation of the settings and the vehicle system before the final installation.

Note: CAN bus connector: 40-pin Quadlock. BMW connector:
OEM SWC > 3.5 mm jack / loose wire connector:
OEM antenna Fakra(m)( > DIN(m) connector: +12V continuous current yellow terminal30 battery fuse vehicles with Business Professional
OEM HU vehicles with Climatronic
vehicles without OEM navigation system
vehicles without iDrive in the center console
vehicles without OEM MOST reinforced system
PDC / warning signals not supported* adjustment in the radio slot with workshop tools necessary
switch strip needs to be moved

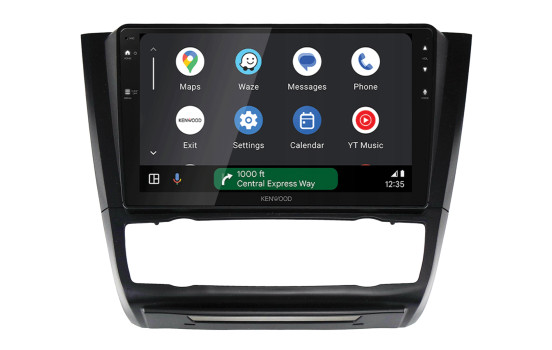

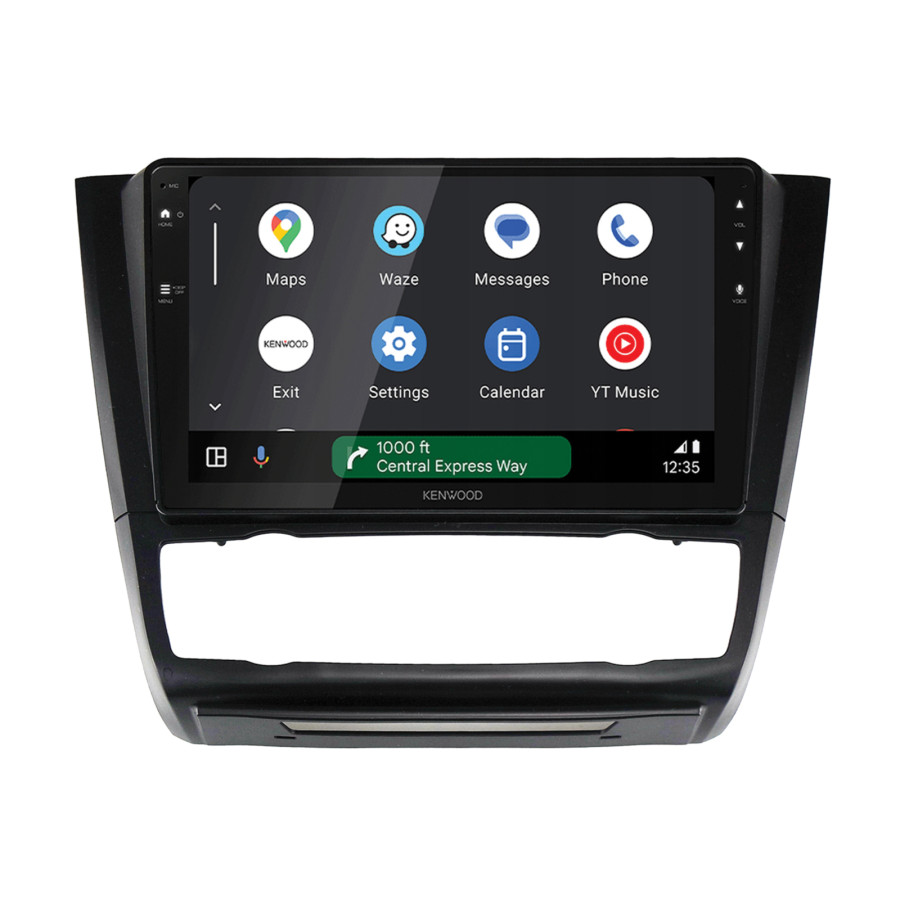

9" short-chassis HU with trapezoidal screen
9" modular HU with trapezoidal screen and silver housing
HU unit with customized accessories
Display unit with customized accessories dip switch settings for the manufacturer of the retrofit device (consult the manual)

Vehicle application:

BMW 1-series (E81/E87/E82/E88) 10/2007 - 01/2012
BMW 1-series (E82/E88) 03/2011 - 10/2013
Color: black
Mounting cutout 7"

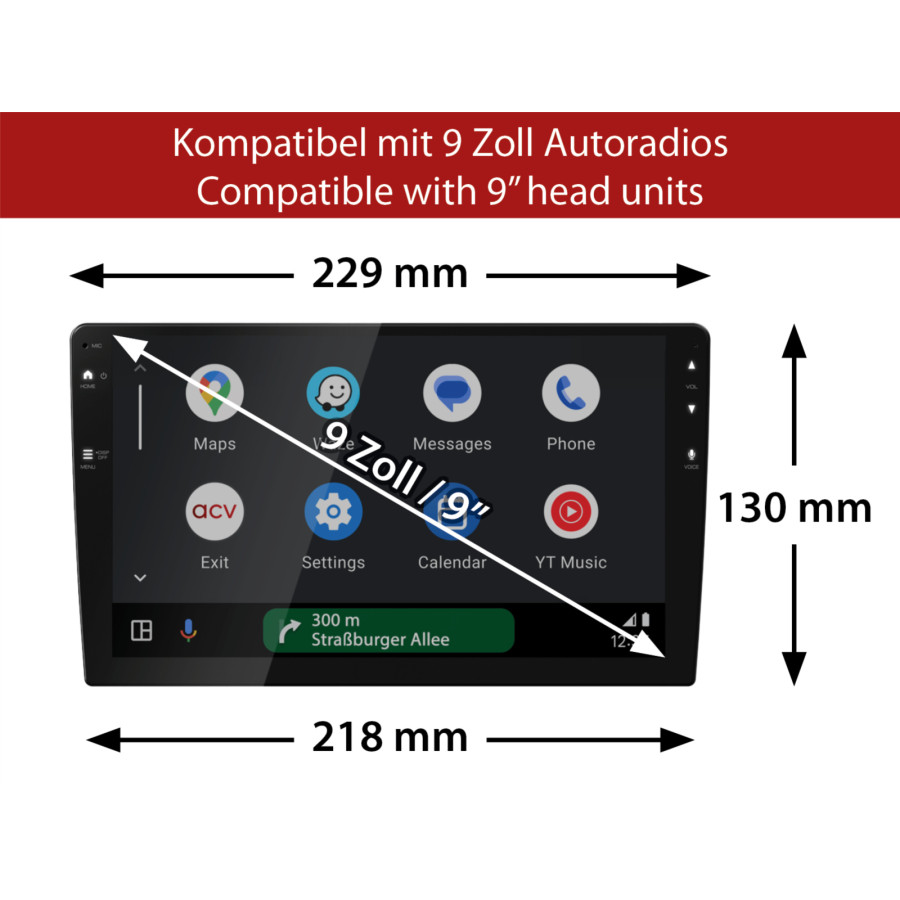

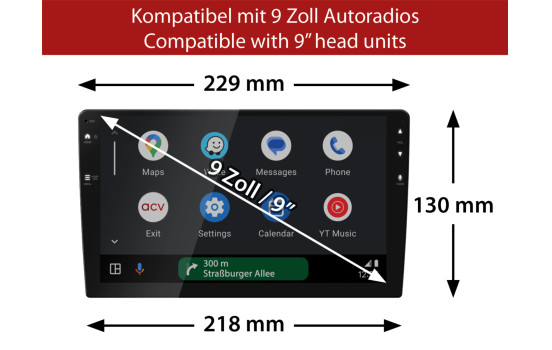

HU display: 230mm/220mm x 130mm.
The following signals are provided:
Imported vehicles or vehicles with other software may be incompatible in terms of functions.
Red: +12V ignition terminal 15,
orange: +12V lighting terminal 58 ,
purple/white: +12V reverse gear signal,
pink: velocity pulse signal,
Green: Mass (GND) parking brake signal.

Output power: maximum 250 mA.

Current requirement at more than 250 mA:
1 relay coil resistance minimum 75 Ohm,
2 relay coil resistance minimum 150 Ohm.

SWC

optional Chimes Interface BMW/Citroën/Peugeot/Fiat/Ford/Volvo > article: can-pdc

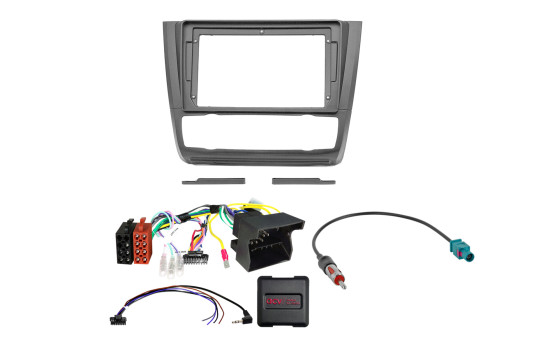

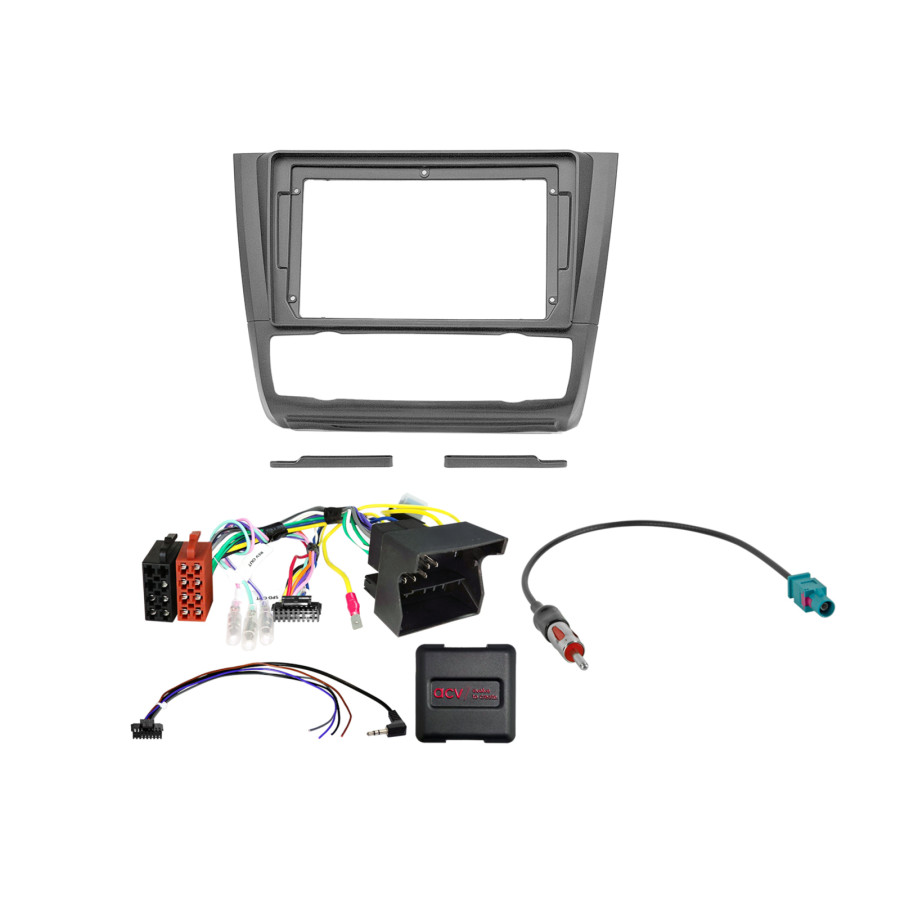

Scope of delivery:

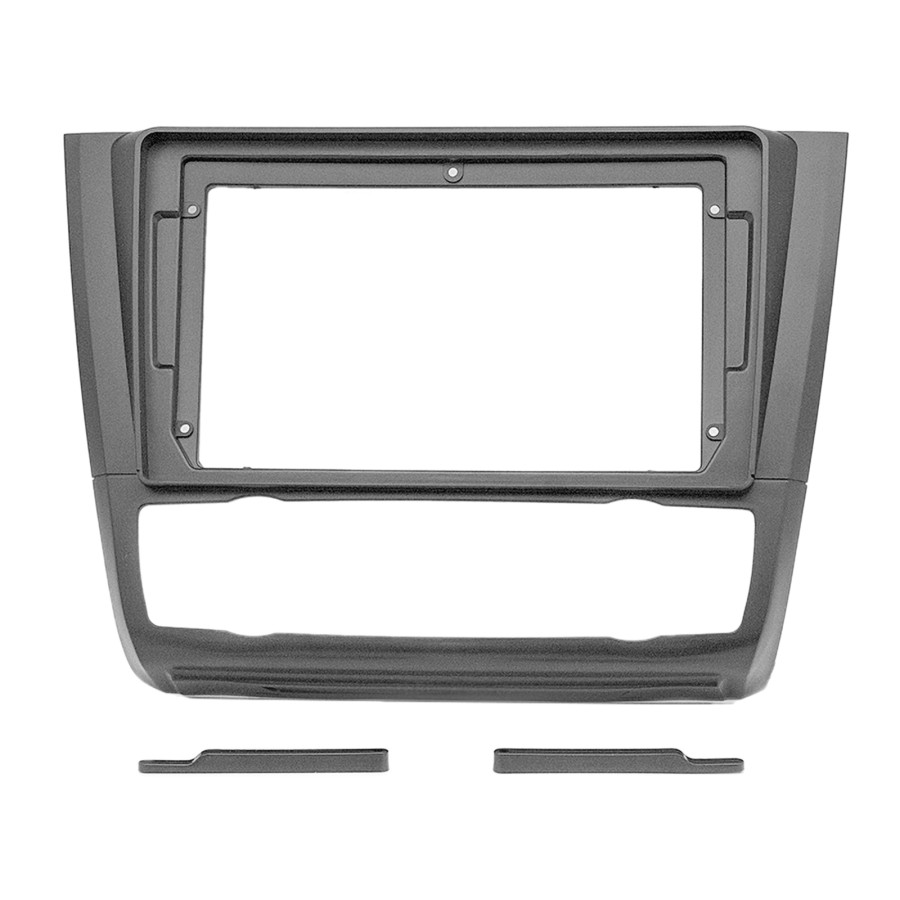

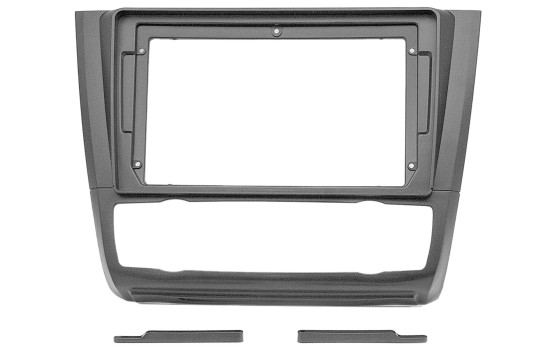

9" dashboard panel BMW 1-series 10/2007-10/2013 climatronic > article: 381023-92-1

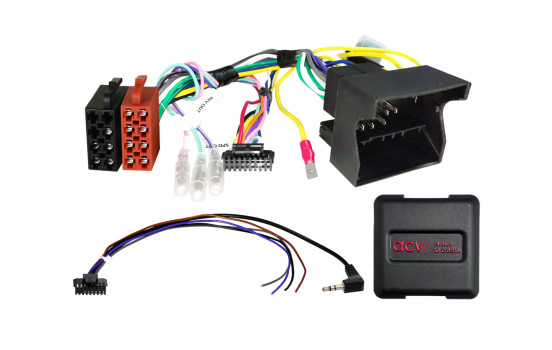

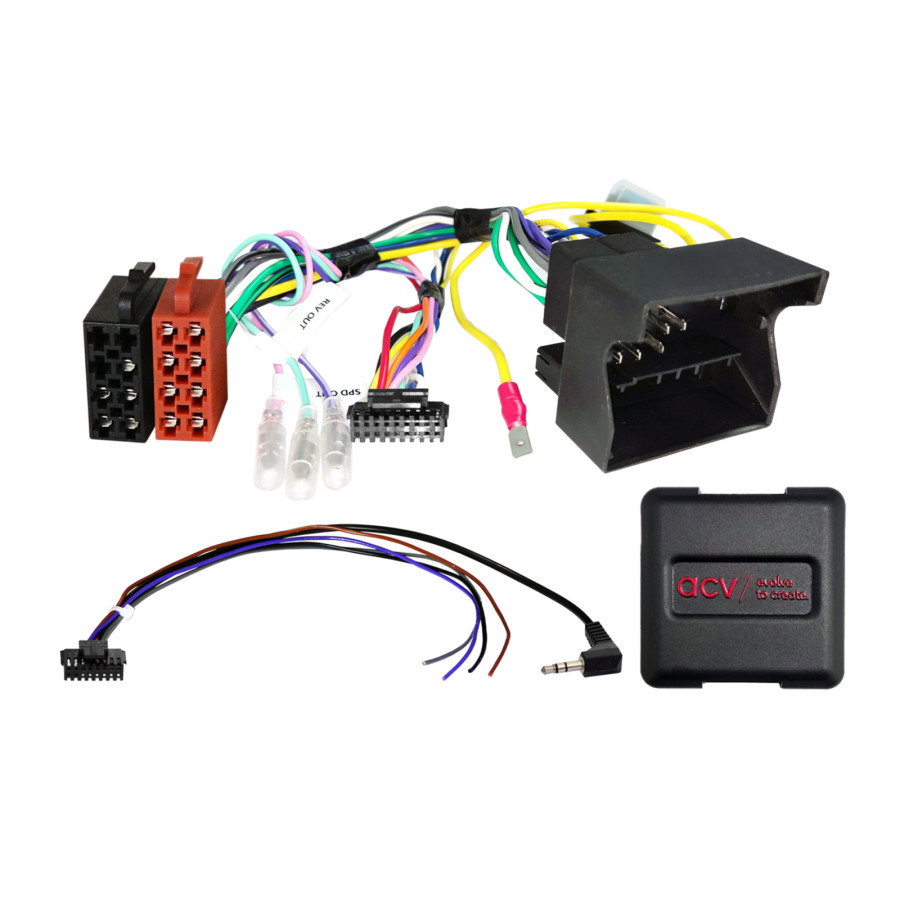

SWC BMW/Min vehicles 40-pin Quadlock Multilead CAN Bus bulk > item: 42xbm005-0

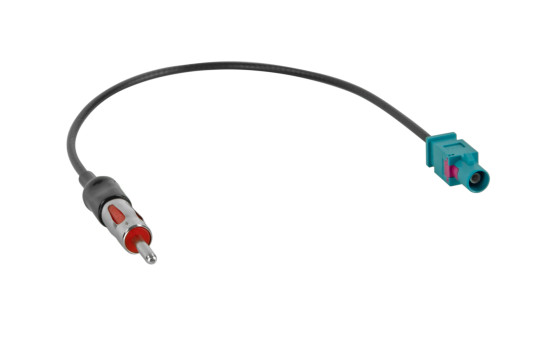

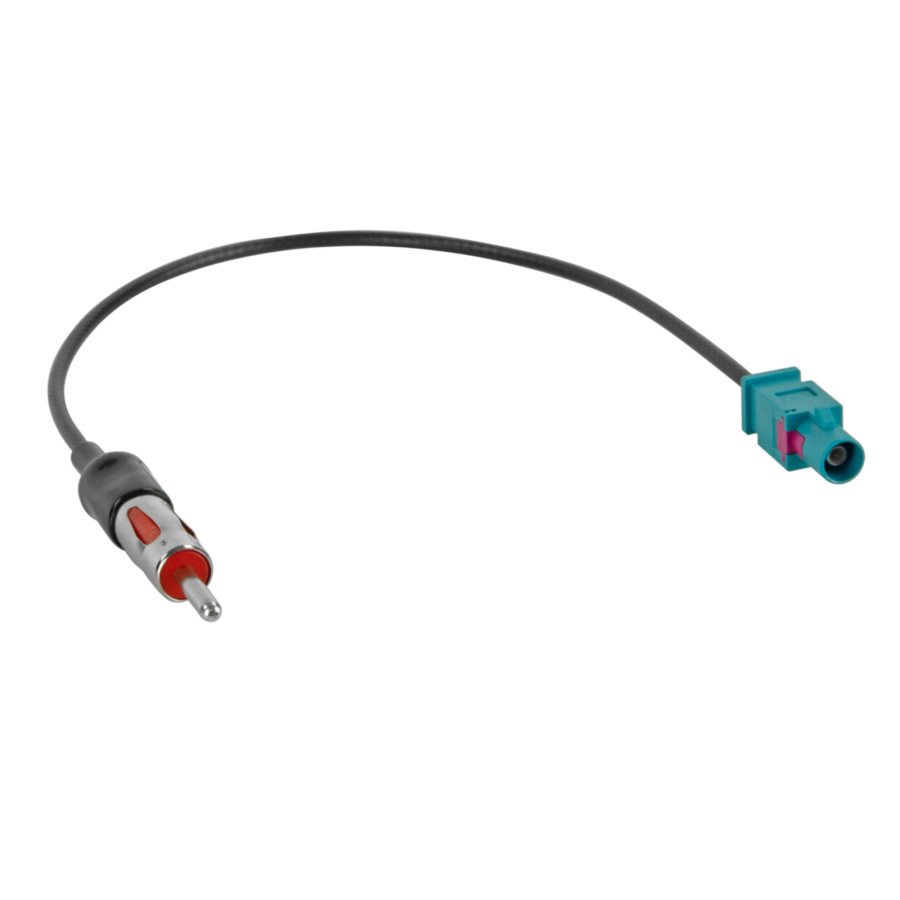

Antenna adapter Fakra Z(m)>DIN(m) passive LEONI/ROKA bulk > article: 1524-01-1-0

Optional:

9" dashboard panel accessory 9" to 10" display adapter > item: 271000-42

Suitable for:
BMW 1 Series 2007-2013 (E8-)

---

Colour	Black
application	Ready
Type	2-DIN
Warranty	2 years
