9" Kit BMW 3series(E46) 07/1998-02/2007 black SWC/antenna

Front panel 9" and HU connector kit SWC BMW.

Many car manufacturers install car-specific head units that match the look of the dashboard.

Installation kits contain all components for replacing an OEM head unit.

Depending on the vehicle equipment, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included in the delivery.

Check the installation instructions for the individual components.

In some cases, not all vehicle functions are supported.
For example, Trailer Assist, E Call, or other driver assistance systems.

Before installation, check the OEM head unit and vehicle settings for available settings.

Depending on the vehicle equipment, the range of functions, and the software of the retrofit head unit, certain control functions may be missing or replaced by other functions.

Compare the pictured wiring harness connectors with the connectors in your car and ensure that they match visually and technically.

Also check whether one of the listed OEM head units was originally installed.

Finally, check the vehicle functionality, vehicle settings, and SWC functionality before final assembly.

Remark:

I-Bus-

connector: 17-pin BMW
-connector: 40-pin Quadlock BMW -
connector: OEM steering wheel > 3.5 mm jack / loose
wire connector: OEM antenna Fakra(m)( > DIN(m)

vehicles with Business OEM-
main unit vehicles with Professional OEM navigation system*

vehicles without OEM reinforced system

OEM devices must be disconnected:
CD changer / TV tuner / telephone module

vehicles without OEM reinforced system
vehicles without OEM navigation system:
The climate control system needs to be moved.

Adjustment in the radio slot with workshop tools required 9" short main unit with trapezoidal screen 9" modular main unit with trapezoidal screen and silver housing 9" L-shaped main unit with L-shaped screen at the bottom

are not compatible with trapezoidal screens

Main unit with customized accessories
Display assembly with custom accessories

dip switch settings for the manufacturer of the retrofit device (consult the manual)

Vehicle application:

BMW 3 Series (E46) 07/1998 - 02/2007

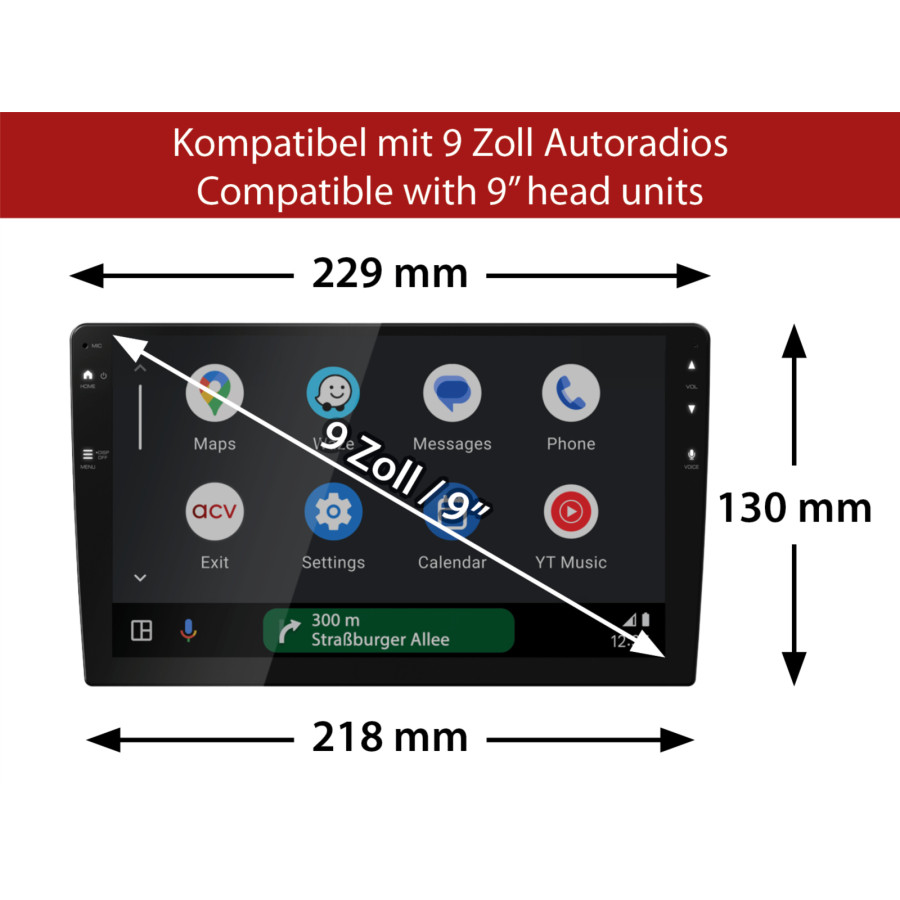

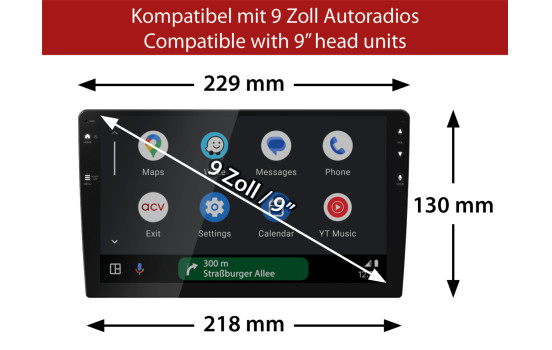

Color: Black Mounting cutout 7" main unit display: 230 mm/220 mm x 130 mm. The following information is provided: Imported vehicles or vehicles with different software may be incompatible in terms of functions. SWC 17-pin BMW:
Vehicles with professional OEM navigation BMW extension 17-pin (female) > 17-pin (male)/antenna 6.5 m bulk > item: 1020-21-6500-0

40-pin Quadlock BMW:
Vehicles with professional OEM navigation BMW extension Quadlock (female) > Quadlock (male)/antenna 6.5 m: 1020-21-6500-0

Optional:

9" dashboard panel accessory 9" to 10" display adapter > item: 271000-42

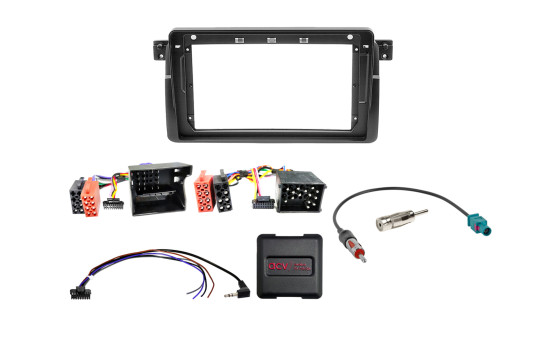

Scope of delivery:

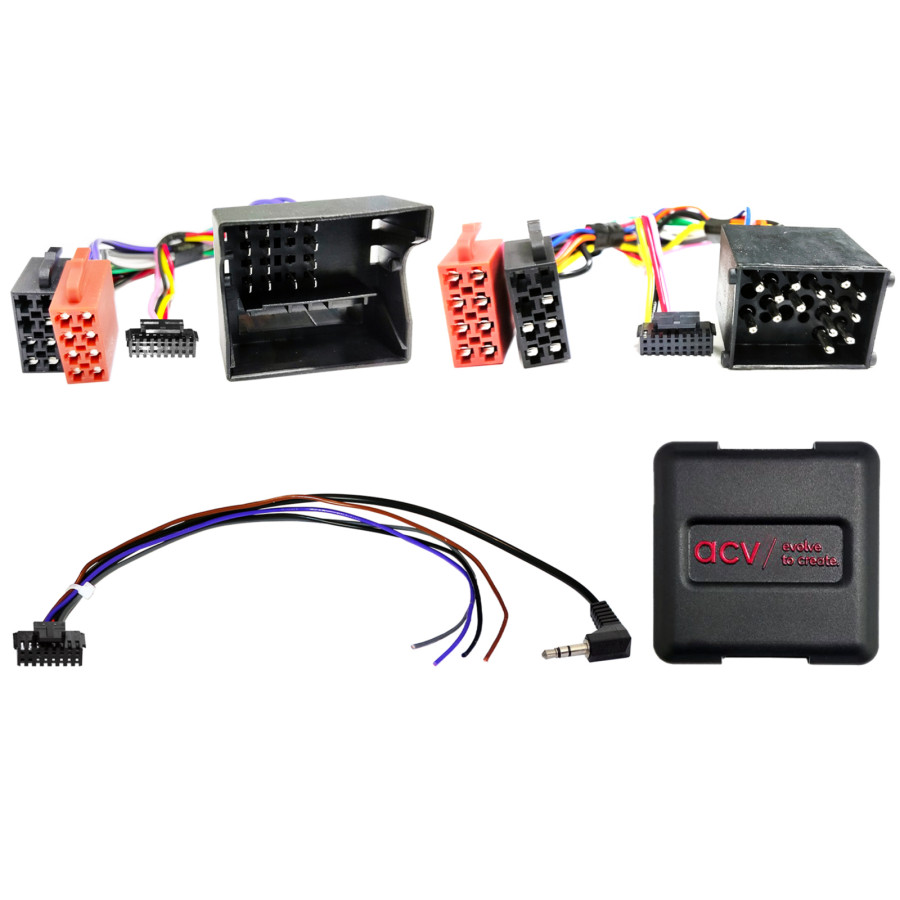

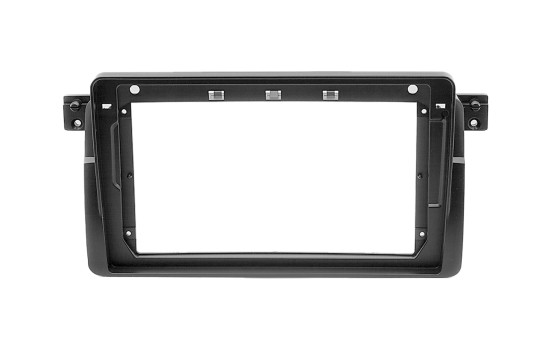

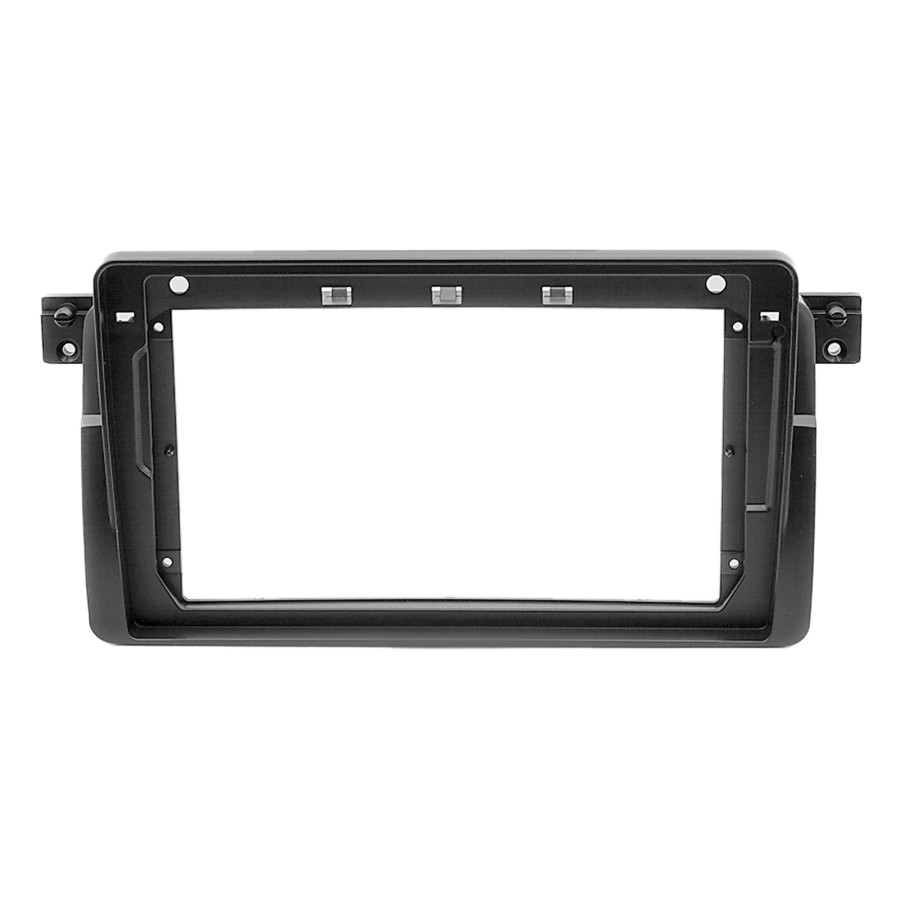

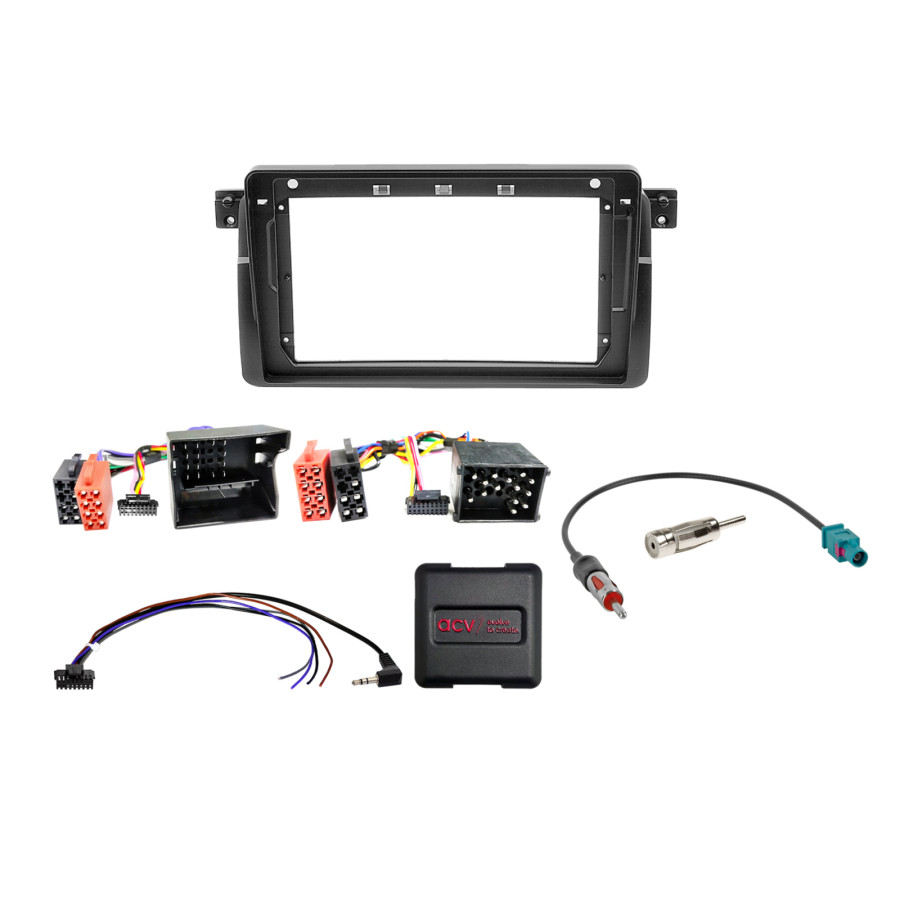

9" dashboard panel BMW 3 Series (E46) 07/1998-02/2007 black > item: 381023-90-1

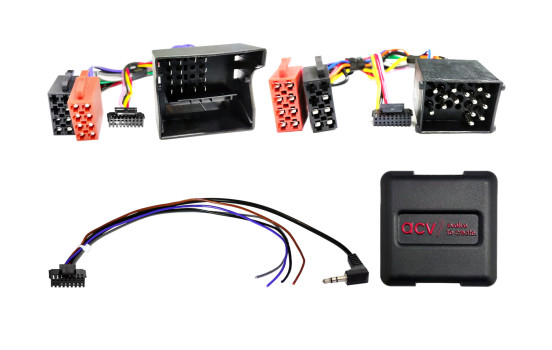

iSWC BMW/Mini vehicles 17-pin/Quadlock IBus Multilead bulk > item: 42xbm00c-0

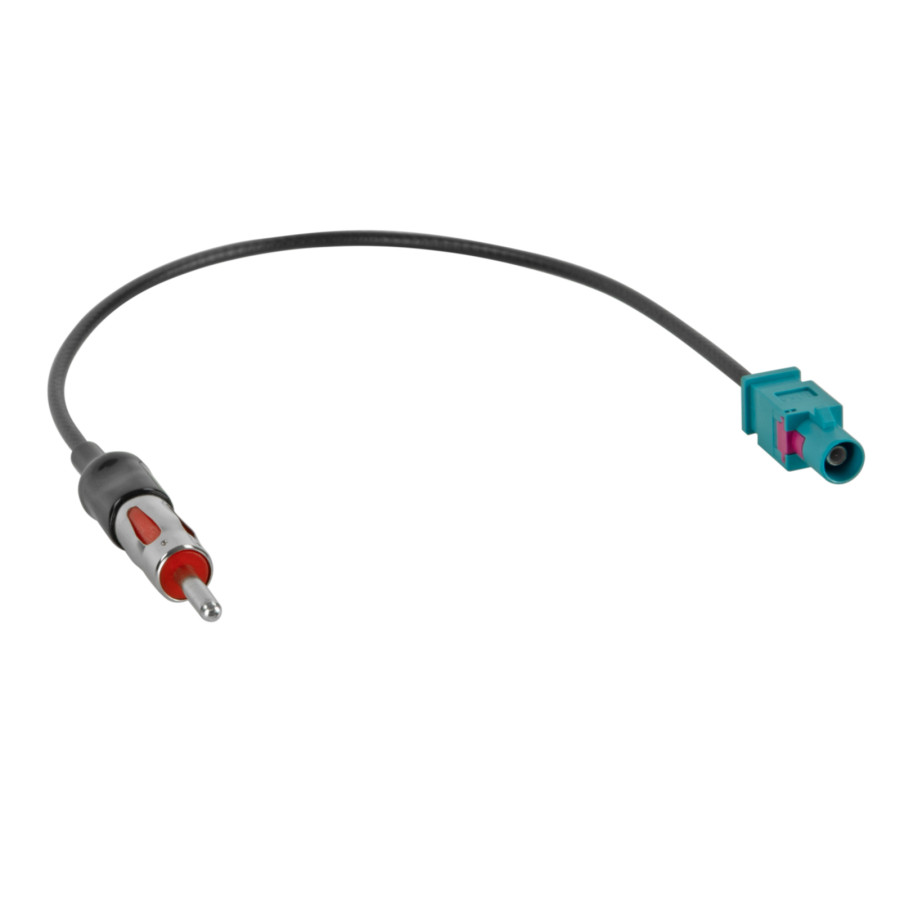

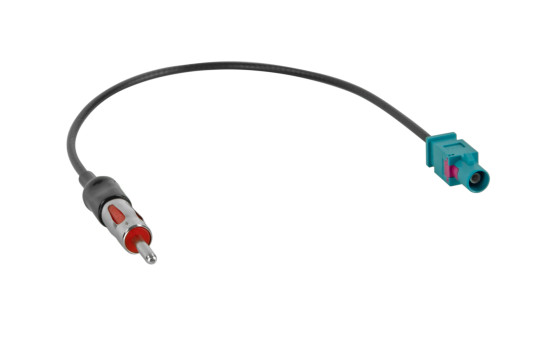

Antenna adapter Fakra Z (male)>DIN (male) Passive LEONI/ROKA bulk > item: 1524-01-1-0

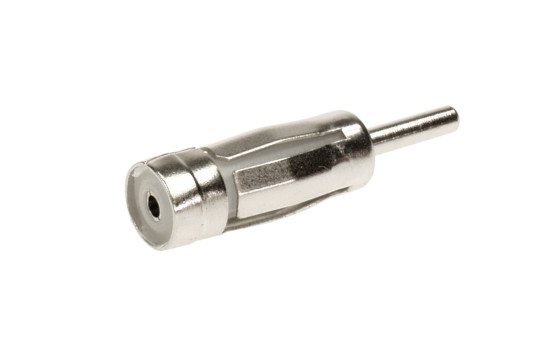

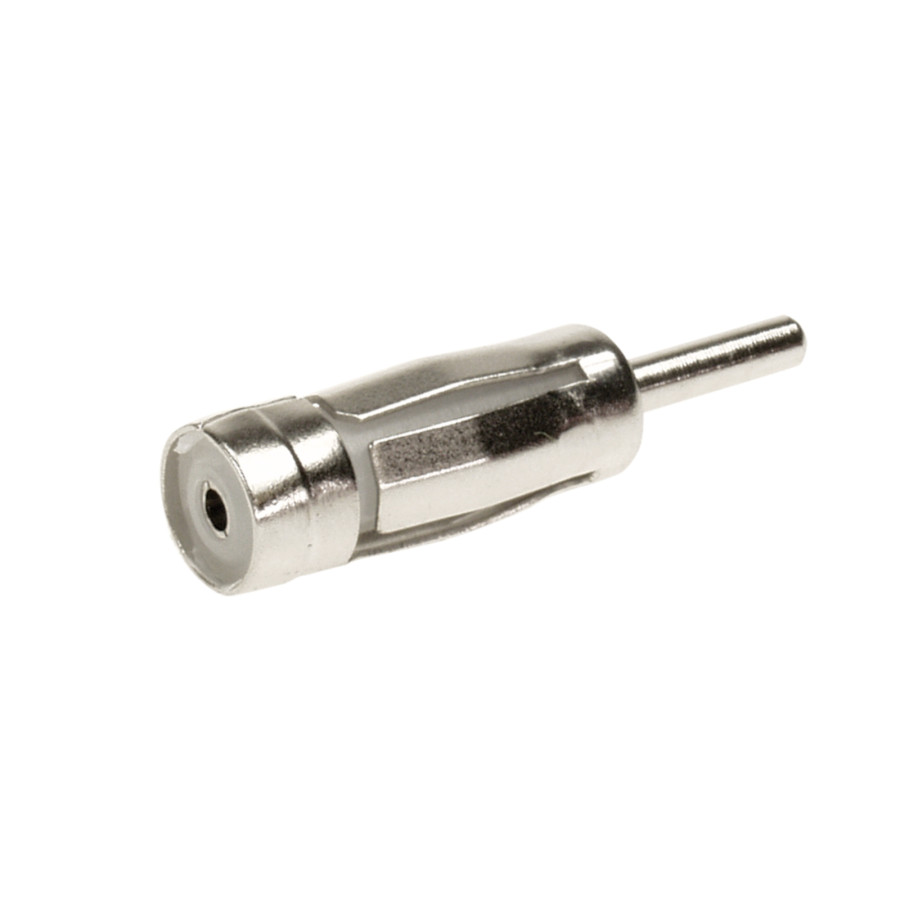

Antenna adapter ISO(f)>DIN(m) bulk > article: 1500-00-0

Suitable for:
BMW 3 Series 1998-2007 (E4-)

---

Colour	Black
application	Ready
Type	2-DIN
Warranty	2 years
