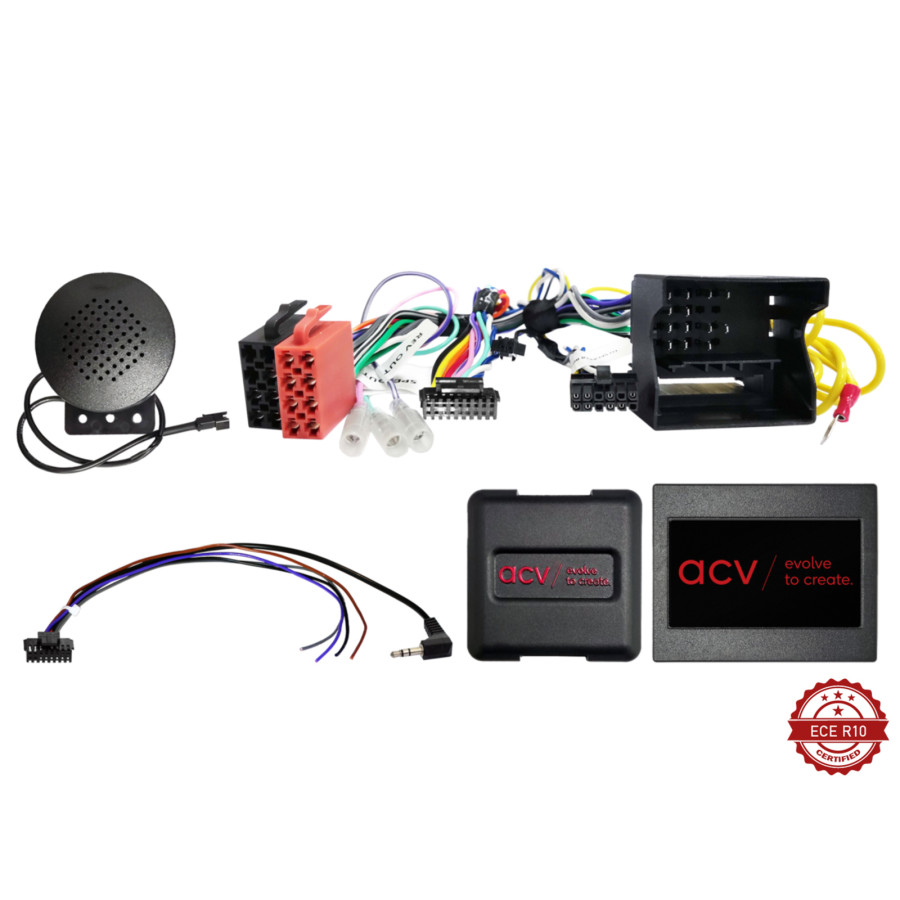

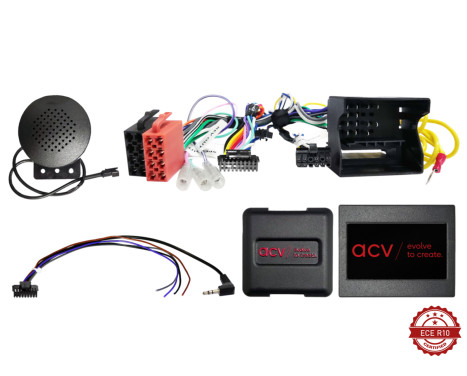

SWI BMW 1/3/5 series 40Pin Multilead CAN Bus/PDC (42sbm006)

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the illustrated connector of the adapter with
which in your car to ensure that you have the right one.

Also check if one of the
The specified original factory radio is installed in your vehicle!

Remark:

CAN bus

connector: 40-pin Quadlock BMW
connector: OEM SWC > 3.5 mm connection / loose wire
Connector: +12 V continuous current, yellow terminal 30, battery with fuse

vehicles without iDrive
vehicles without OEM MOST reinforcement system

vehicles with OEM MOST reinforcement system:
SWC BMW 1/3/5 series/X5/X6 Quadlock Multilead MOST Amp > item: 42xbm012
Active system adapter BMW MOST>RCA > item: 13-1024-51

PDC / warning signals supported

dip switch settings for the manufacturer of the retrofit device (consult the manual)

Application per vehicle:

BMW 1-series (E81/E82/E87/E88) 03/2004 - 10/2013*
BMW 3-series (E90/E91/E92/E93) 03/2005 - 10/2013*
BMW 5-series (E60/E61) 07/2003 - 03/2007*
BMW 5-series (E60/E61) 03/2007 - 02/2010*
BMW 6-series (E63/E64) 09/2004 - 11/2010
BMW 7 series (E65/E66) 08/2001 - 11/2008
BMW X1 (E84) 10/2009 - 06/2015
BMW X5 (E70) 03/2007 - 09/2013*
BMW X6 (E71/E72) 05/2008 - 06/2014*
BMW Z4 (E89) 05/2009 - 08/2016

BMW Mini (R55/R56/R57/R58/R59) 11/2006 - 05/2015**

The following signals are provided:

Re-imported vehicles or vehicles with different software may be incompatible in terms of functions.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
pink: speed pulse signal
green: GND parking brake signal

Output load capacity: max. 250 mA

current consumption more than 250 mA:
1 relay coil resistor min. 75 Ohm
2 relay coils resistance min. 150 Ohm

SWC

Rear PDC warning signals supported
Warning signals supported

*vehicles with OEM MOST amplification system SWC BMW 1/3/5 Series/X5/X6 40-pin Quadlock amplifier MOST > item: 42xbm012
Optional active system adapter BMW MOST > RCA > item: 13-1024-51
**OEM speedometer display not supported

Suitable for:
Universal
BMW 1 Series 2004-2013 (E8-)
BMW 3 Series 2005-2013 (E9-)
BMW 5 Series 2003-2010 (E6-)
BMW 6 Series 2004-2010 (E6-)
BMW 7 Series 2001-2008 (E6-)
BMW X1 2009-2015 (E8-)
BMW X5 2007-2013 (E7-)
BMW X6 2008-2014 (E7-)
BMW Z4 2009-2016
Mini Cooper 2006-2015

---

Warranty	2 years
Suitable for	CAN-bus
