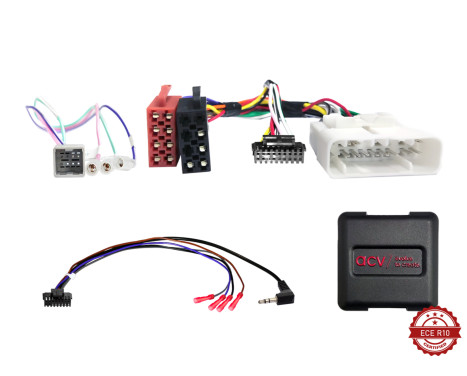

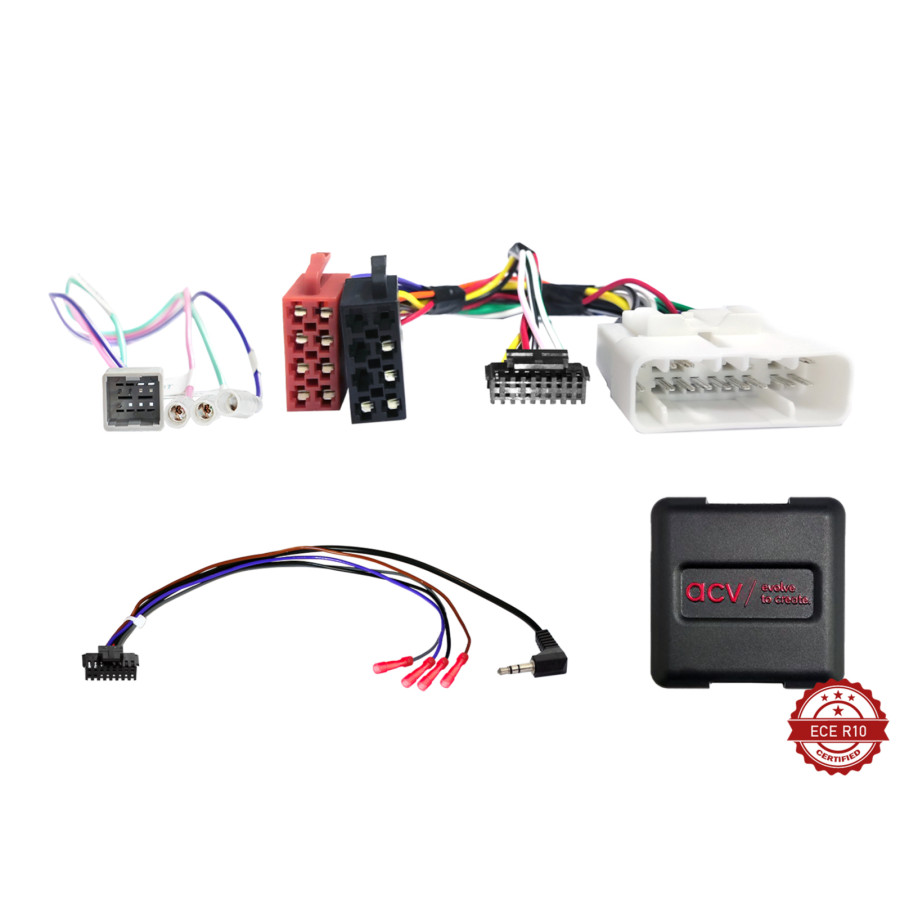

SWI Isuzu D-Max 16-pin with touchscreen multilead

Name: SWI Isuzu D-Max 16-pin with touchscreen multilead | Winparts.ie - Steering wheel control
Brand: ACV
SKU: 2182491
Price: 82.33 EUR
Availability: InStock

Product number: 2182491

Manufacturer number: 42xiz006

EAN: 4026724679427

€ 82,³³

Incl. VAT

View product specifications

Not available

Free 30 days exchanges
Any part, any car
Shipment within 9 days
Expert support

UPS

Customer service: 056 771 9932

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

Enter your number plate or Manually select.

Specifications

Retain the original steering wheel controls when replacing the factory radio with
an aftermarket radio.

Depending on the vehicle's equipment and the functionality and software of the
with an aftermarket device, certain control functions may be lost or be
replace by other functions.

Compare the adapter plugs shown with those in your vehicle and check if they fit visually and technically.

Also check whether one of the listed original factory radios was installed in your vehicle.

Before final assembly, check whether the vehicle functions, vehicle settings and
Steering wheel controls work properly.

Remark:
Analog
connection: 16-pin Isuzu connector
Connection: 8-pin Isuzu connector Reversing signal
Connection: OEM steering wheel remote control > 3.5 mm jack / separate cable
Connection: OEM AM/FM antenna > DIN (male)
Connection: OEM DAB antenna > SMB (female)
Vehicles with touchscreen OEM device
Suitable for the following vehicles:
Isuzu D-Max (BFT) 11/2020 - 11/2024
Isuzu D-Max (WFT) 04/2020 - 2026
The following signals are provided:
Steering wheel remote control

Suitable for:
Isuzu D-Max 2020-2026

Warranty	2 years

Applicability

ISUZU

	D-MAX II
	D-MAX II (TFR, TFS) \| 04.2012-12.2022 1.9 Ddi (TFR87J) - 1898ccm, 163pk, 120kw - RZ4E-TC
	D-MAX II (TFR, TFS) \| 04.2012-12.2022 1.9 Ddi 4x4 (TFS87J) - 1898ccm, 163pk, 120kw - RZ4E-TC
	D-MAX II (TFR, TFS) \| 04.2012-12.2022 2.5 CRDi (TFR86J) - 2499ccm, 163pk, 120kw - 4JK-1E5-TC, 4JK1-E5S-L
	D-MAX II (TFR, TFS) \| 04.2012-12.2022 2.5 CRDi 4x4 (TFS86J) - 2499ccm, 163pk, 120kw - 4JK-1E5-TC, 4JK1-E5S-L
	D-MAX II Platform/Chassis (TFR, TFS) \| 06.2012-??? 2.5 CRDi - 2499ccm, 163pk, 120kw - 4JK1-TCY
	D-MAX II Platform/Chassis (TFR, TFS) \| 06.2012-??? 2.5 CRDi 4WD - 2499ccm, 163pk, 120kw - 4JK1-TCY
	D-MAX III
	D-MAX III (TFR, TFS) \| 11.2019-??? 1.9 DDI (TFR87) - 1898ccm, 163pk, 120kw - RZ4E-TCX
	D-MAX III (TFR, TFS) \| 11.2019-??? 1.9 DDI (TFR87J, TFR87) - 1898ccm, 150pk, 110kw - RZ4E-TC
	D-MAX III (TFR, TFS) \| 11.2019-??? 1.9 DDI 4x4 (TFS87) - 1898ccm, 163pk, 120kw - RZ4E-TCX
	D-MAX III (TFR, TFS) \| 11.2019-??? BEV 4x4 (TFS46) - 0ccm, 190pk, 140kw -
	D-MAX III (TFR, TFS) \| 11.2019-??? BEV 4x4 (TFS46) - 0ccm, 203pk, 149kw - HC11, HD11
	D-MAX III (TFR, TFS) \| 11.2019-??? DDi (TFR41J) - 2164ccm, 163pk, 120kw - RZ4F-TC
	D-MAX III (TFR, TFS) \| 11.2019-??? DDi 4x4 (TFS41J) - 2164ccm, 163pk, 120kw - RZ4F-TC
	D-MAX III Platform/Chassis (TFR, TFS) \| 06.2023-??? 1.9 DDI 4x4 - 1898ccm, 163pk, 120kw - RZ4E-TCX
