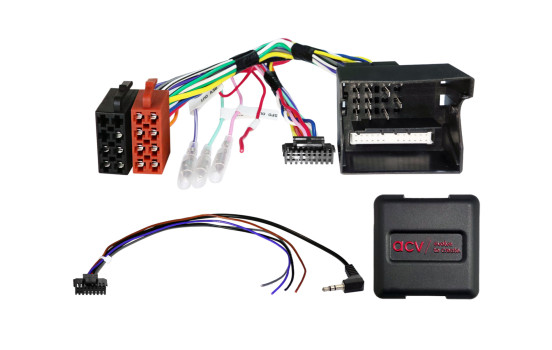

SWI Opel Corsa (D) 2008-2014 40Pin Quadlock Multilead (42svx003)
Product number: 2023304
Manufacturer number: 42xvx003
EAN: 4026724674576
-
Free 30 days exchanges
-
Any part, any car
-
Fast delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications
Steering wheel control interface
Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the adapter's illustrated connector with
the one in your car to make sure you have the right one.
Also check if any of the
specified original factory radio is installed in your vehicle!
Remark:
CAN bus
Connection: 40-pin Quadlock Opel connector
Connection: OEM steering wheel remote control > 3.5mm jack / loose cable
Connection: Support voltage > loose cable
Vehicles with OEM device CD30 / CD30 MP3 / CDC40 / CD50 / CD70 / DVD90
Connecting loose cable:
red: +12V ignition current terminal 15 fuse box fused
Vehicles with interface failure after a long period of use:
1: Connect OEM device
2: Establish CAN bus standstill
3: Alternative CAN bus branch: 32-pin OEM display connector Can High / Can Low > Pin 20 / Pin 23
4: Alternative CAN bus branch: Comfort CAN to climate control system
Supported vehicle settings (see BDA)
DIP switch settings for the retrofit device manufacturer (see BDA)
Suitable for the following vehicles:
Opel Corsa D (S07) 12/2008 - 11/2010
Opel Corsa D (S07) 01/2011 - 08/2014
The following signals are provided:
Re-imported vehicles or vehicles with different software may be incompatible in terms of functions.
red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reversing signal
pink: speed signal
green: ground GND handbrake signal
Output load capacity: 250 mA max.
Current requirement greater than 250 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.
Steering wheel remote control
Supported vehicle settings
Suitable for:
Opel Corsa 2008-2014
Warranty 2 years -
Applicability
OPEL CORSA C CORSA C (X01) | 09.2000-12.2009 1.0 (F08, F68) - 973ccm, 58pk, 43kw - Z 10 XE CORSA C (X01) | 09.2000-12.2009 1.0 (F08, F68) - 998ccm, 60pk, 44kw - Z 10 XEP CORSA C (X01) | 09.2000-12.2009 1.2 (F08, F68) - 1199ccm, 75pk, 55kw - Z 12 XE CORSA C (X01) | 09.2000-12.2009 1.2 Twinport (F08, F68) - 1229ccm, 80pk, 59kw - Z 12 XEP CORSA C (X01) | 09.2000-12.2009 1.3 CDTI (F08, F68) - 1248ccm, 70pk, 51kw - Z 13 DT, Y 13 DT CORSA C (X01) | 09.2000-12.2009 1.4 (F08, F68) - 1389ccm, 90pk, 66kw - Z 14 XE CORSA C (X01) | 09.2000-12.2009 1.4 Twinport (F08, F68) - 1364ccm, 90pk, 66kw - Z 14 XEP CORSA C (X01) | 09.2000-12.2009 1.7 CDTI (F08, F68) - 1686ccm, 100pk, 74kw - Z 17 DTH CORSA C (X01) | 09.2000-12.2009 1.7 DI (F08, F68) - 1686ccm, 65pk, 48kw - Y 17 DTL CORSA C (X01) | 09.2000-12.2009 1.7 DTI (F08, F68) - 1686ccm, 75pk, 55kw - Y 17 DT CORSA C (X01) | 09.2000-12.2009 1.8 (F08, F68) - 1796ccm, 125pk, 92kw - Z 18 XE CORSA C Hatchback Van (X01) | 09.2000-06.2006 1.2 (F08, W5L) - 1229ccm, 80pk, 59kw - Z 12 XEP CORSA C Hatchback Van (X01) | 09.2000-06.2006 1.2 16V (F08, W5L) - 1199ccm, 75pk, 55kw - Z 12 XE CORSA C Hatchback Van (X01) | 09.2000-06.2006 1.3 CDTI 16V (F08, W5L) - 1248ccm, 69pk, 51kw - Z 13 DT CORSA C Hatchback Van (X01) | 09.2000-06.2006 1.7 DI 16V (F08, W5L) - 1686ccm, 65pk, 48kw - Y 17 DTL CORSA C Hatchback Van (X01) | 09.2000-06.2006 1.7 DTI 16V (F08, W5L) - 1686ccm, 75pk, 55kw - Y 17 DT CORSA D CORSA D (S07) | 07.2006-08.2014 1.0 (L08, L68) - 998ccm, 65pk, 48kw - A 10 XEP CORSA D (S07) | 07.2006-08.2014 1.0 (L08, L68) - 998ccm, 60pk, 44kw - Z 10 XEP CORSA D (S07) | 07.2006-08.2014 1.2 (L08, L68) - 1229ccm, 69pk, 51kw - A 12 XEL CORSA D (S07) | 07.2006-08.2014 1.2 (L08, L68) - 1229ccm, 86pk, 63kw - A 12 XER CORSA D (S07) | 07.2006-08.2014 1.2 (L08, L68) - 1229ccm, 80pk, 59kw - Z 12 XEP CORSA D (S07) | 07.2006-08.2014 1.2 LPG (L08, L68) - 1229ccm, 83pk, 61kw - A 12 XER CORSA D (S07) | 07.2006-08.2014 1.2 LPG (L08, L68) - 1229ccm, 86pk, 63kw - A 12 XER CORSA D (S07) | 07.2006-08.2014 1.2 LPG (L08, L68) - 1229ccm, 80pk, 59kw - Z 12 XEP CORSA D (S07) | 07.2006-08.2014 1.3 CDTI (L08, L68) - 1248ccm, 75pk, 55kw - A 13 DTC, Z 13 DTJ CORSA D (S07) | 07.2006-08.2014 1.3 CDTI (L08, L68) - 1248ccm, 95pk, 70kw - A 13 DTE, A 13 DTR, Z 13 DTE CORSA D (S07) | 07.2006-08.2014 1.3 CDTI (L08, L68) - 1248ccm, 90pk, 66kw - Z 13 DTH CORSA D (S07) | 07.2006-08.2014 1.4 (L08, L68) - 1364ccm, 120pk, 88kw - A 14 NEL CORSA D (S07) | 07.2006-08.2014 1.4 (L08, L68) - 1398ccm, 87pk, 64kw - A 14 XEL CORSA D (S07) | 07.2006-08.2014 1.4 (L08, L68) - 1398ccm, 100pk, 74kw - A 14 XER CORSA D (S07) | 07.2006-08.2014 1.4 (L08, L68) - 1364ccm, 90pk, 66kw - Z 14 XEP CORSA D (S07) | 07.2006-08.2014 1.4 LPG (L08, L68) - 1398ccm, 87pk, 64kw - A 14 XEL CORSA D (S07) | 07.2006-08.2014 1.4 LPG (L08, L68) - 1364ccm, 90pk, 66kw - Z 14 XEP CORSA D (S07) | 07.2006-08.2014 1.6 Turbo (L08, L68) - 1598ccm, 150pk, 110kw - A 16 LEL, Z 16 LEL CORSA D (S07) | 07.2006-08.2014 1.6 Turbo (L08, L68) - 1598ccm, 192pk, 141kw - A 16 LER, B 16 LER, Z 16 LER CORSA D (S07) | 07.2006-08.2014 1.6 Turbo (L08, L68) - 1598ccm, 211pk, 155kw - A 16 LES CORSA D (S07) | 07.2006-08.2014 1.7 CDTI (L08, L68) - 1686ccm, 130pk, 96kw - A 17 DTS CORSA D (S07) | 07.2006-08.2014 1.7 CDTI (L08, L68) - 1686ccm, 125pk, 92kw - Z 17 DTR CORSA D Hatchback Van (S07) | 07.2006-08.2014 1.0 (L08) - 998ccm, 60pk, 44kw - A 10 XEP CORSA D Hatchback Van (S07) | 07.2006-08.2014 1.0 (L08) - 998ccm, 65pk, 48kw - A 10 XEP CORSA D Hatchback Van (S07) | 07.2006-08.2014 1.2 (L08) - 1229ccm, 69pk, 51kw - A 12 XEL CORSA D Hatchback Van (S07) | 07.2006-08.2014 1.2 (L08) - 1229ccm, 86pk, 63kw - A 12 XER CORSA D Hatchback Van (S07) | 07.2006-08.2014 1.2 (L08) - 1229ccm, 80pk, 59kw - Z 12 XEP CORSA D Hatchback Van (S07) | 07.2006-08.2014 1.3 CDTI (L08) - 1248ccm, 75pk, 55kw - A 13 DTC, Z 13 DTJ CORSA D Hatchback Van (S07) | 07.2006-08.2014 1.3 CDTI (L08) - 1248ccm, 95pk, 70kw - A 13 DTE, A 13 DTR, Z 13 DTE CORSA D Hatchback Van (S07) | 07.2006-08.2014 1.3 CDTI (L08) - 1248ccm, 90pk, 66kw - Z 13 DTH CORSA D Hatchback Van (S07) | 07.2006-08.2014 1.4 (L08) - 1398ccm, 101pk, 74kw - A 14 XER CORSA E CORSA E (X15) | 09.2014-06.2019 1.0 (08, 68) - 999ccm, 90pk, 66kw - B 10 XFL, F 10 XFL, D 10 XFL CORSA E (X15) | 09.2014-06.2019 1.0 (08, 68) - 999ccm, 115pk, 85kw - B 10 XFT, D 10 XFT CORSA E (X15) | 09.2014-06.2019 1.2 (08, 68) - 1229ccm, 69pk, 51kw - B 12 XEL, B 12 XER, D 12 XEL CORSA E (X15) | 09.2014-06.2019 1.3 CDTI (08, 68) - 1248ccm, 75pk, 55kw - B 13 DTC, B 13 DTN CORSA E (X15) | 09.2014-06.2019 1.3 CDTI (08, 68) - 1248ccm, 95pk, 70kw - B 13 DTE, B 13 DTR CORSA E (X15) | 09.2014-06.2019 1.4 (08, 68) - 1398ccm, 75pk, 55kw - B 14 XEJ, D 14 XEJ CORSA E (X15) | 09.2014-06.2019 1.4 (08, 68) - 1398ccm, 90pk, 66kw - B 14 XEL, D 14 XEL CORSA E (X15) | 09.2014-06.2019 1.4 LPG (08, 68) - 1398ccm, 90pk, 66kw - B 14 XEL CORSA E (X15) | 09.2014-06.2019 1.4 Turbo (08, 68) - 1364ccm, 150pk, 110kw - B 14 NEH, D 14 NEH CORSA E (X15) | 09.2014-06.2019 1.4 Turbo (08, 68) - 1364ccm, 101pk, 74kw - B 14 NEJ, D 14 NEJ CORSA E (X15) | 09.2014-06.2019 1.6 Turbo (08, 68) - 1598ccm, 207pk, 152kw - B 16 LES, B 16 LER CORSA E Hatchback Van (X15) | 09.2014-??? 1.2 (08) - 1229ccm, 69pk, 51kw - B 12 XEL CORSA E Hatchback Van (X15) | 09.2014-??? 1.3 CDTI (08) - 1248ccm, 75pk, 55kw - B 13 DTC, B 13 DTN CORSA E Hatchback Van (X15) | 09.2014-??? 1.3 CDTI (08) - 1248ccm, 95pk, 70kw - B 13 DTE, B 13 DTR CORSA E Hatchback Van (X15) | 09.2014-??? 1.4 (08) - 1398ccm, 75pk, 55kw - B 14 XEJ CORSA E Hatchback Van (X15) | 09.2014-??? 1.4 (08) - 1398ccm, 90pk, 66kw - B 14 XEL CORSA UTILITY CORSA UTILITY C Pickup | 03.2005-05.2010 1.8 - 1796ccm, 107pk, 79kw - N 18 XFH -
