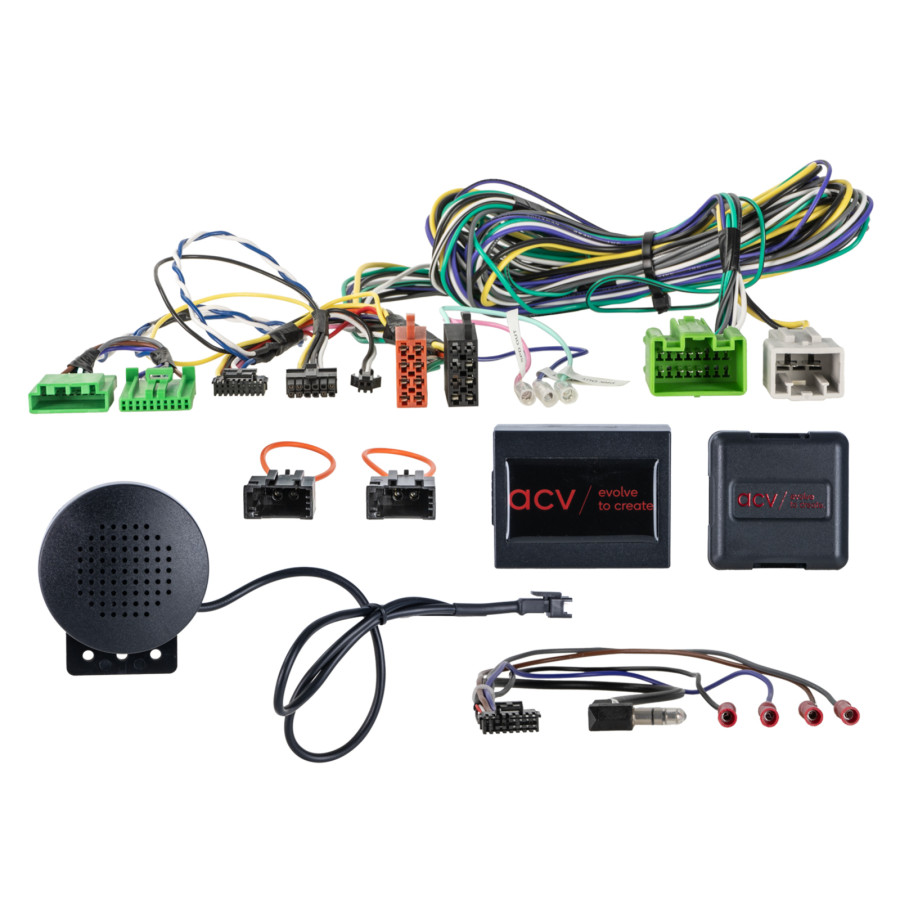

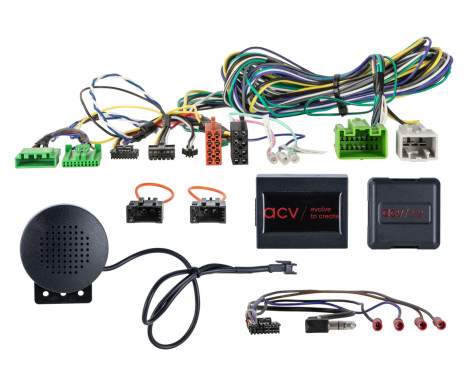

SWI Volvo XC90 2004-2014 Multilead PDC Rear/Amp (42svl004)
Product number: 2104395
Manufacturer number: 42xvl004
EAN: 4026724675634
-
Free 30 days exchanges
-
Any part, any car
-
Fast delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications
Steering wheel control interface
Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the adapter's illustrated connector with
the one in your car to make sure you have the right one.
Also check if any of the
specified original factory radio is installed in your vehicle!
Remark:
CAN bus
Connection: OEM amplifier bypass > ISO
Connection: OEM steering wheel controls > 3.5 mm jack / loose cable
Connection: OEM display > T-cable
Connection: OEM amplifier > Fiber optic cable Loop(f) Most-Ring
Vehicles with OEM amplifier under passenger seat
Vehicles with rear PDC*
Vehicles without PDC for
OEM amplifier bypass:
Front/rear speakers supported
Center speaker not supported
Subwoofer not supported
Vehicles with OEM tuner Silverbox in the trunk, new antenna required:
Glass panel antenna AM/FM DIN(m) 12V external > Article: 151000-04
Glass antenna AM/FM Fakra Z(f) 12V external > Article: 151000-18
Glass antenna AM/FM DIN (m) 12V external > Article: 152000-38
Dipp switch settings for the manufacturer of the retrofitted equipment (see BDA)
Suitable for the following vehicles:
Volvo XC90 (C) 07/2002 - 09/2004
Volvo XC90 (C) 09/2004 - 05/2006
Volvo XC90 (C) 05/2006 - 09/2011
Volvo XC90 (C) 12/2011 - 07/2014
The following signals are available:
Re-imported vehicles or vehicles with different software may be functionally incompatible.
red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reversing signal
pink: speed signal
green: ground GND handbrake signal
Output load capacity: 250 mA max.
Current consumption greater than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relay coil resistance 150 Ohm min.
Steering wheel controls
*PDC function not guaranteed
Suitable for:
Volvo XC90 2002-2014
Warranty 2 years -
Applicability
VOLVO XC90 I XC90 I (275) | 10.2002-12.2014 2.5 - 2521ccm, 208pk, 153kw - B 5254 T2 XC90 I (275) | 10.2002-12.2014 2.5 T AWD - 2521ccm, 209pk, 154kw - B 5254 T2 XC90 I (275) | 10.2002-12.2014 2.5 T AWD - 2497ccm, 209pk, 154kw - B 5254 T9 XC90 I (275) | 10.2002-12.2014 3.2 - 3192ccm, 238pk, 175kw - B 6324 S XC90 I (275) | 10.2002-12.2014 3.2 AWD - 3192ccm, 238pk, 175kw - B 6324 S XC90 I (275) | 10.2002-12.2014 3.2 AWD - 3192ccm, 243pk, 179kw - B 6324 S5 XC90 I (275) | 10.2002-12.2014 D3 / D5 - 2400ccm, 163pk, 120kw - D 5244 T5 XC90 I (275) | 10.2002-12.2014 D5 AWD - 2401ccm, 163pk, 120kw - D 5244 T XC90 I (275) | 10.2002-12.2014 D5 AWD - 2400ccm, 200pk, 147kw - D 5244 T18 XC90 I (275) | 10.2002-12.2014 D5 AWD - 2400ccm, 211pk, 155kw - D 5244 T18 XC90 I (275) | 10.2002-12.2014 D5 AWD - 2401ccm, 185pk, 136kw - D 5244 T4 XC90 I (275) | 10.2002-12.2014 D5 AWD - 2400ccm, 163pk, 120kw - D 5244 T5 XC90 I (275) | 10.2002-12.2014 T6 AWD - 2922ccm, 272pk, 200kw - B 6294 T XC90 I (275) | 10.2002-12.2014 V8 AWD - 4414ccm, 316pk, 232kw - B 8444 S XC90 I (275) | 10.2002-12.2014 V8 AWD - 4414ccm, 320pk, 235kw - B 8444 S XC90 II XC90 II (256) | 09.2014-12.2022 B5 Mild Hybrid AWD - 1969ccm, 250pk, 184kw - B 420 T2, B420T11 XC90 II (256) | 09.2014-12.2022 B5 Mild-Hybrid - 1969ccm, 249pk, 183kw - B 420 T10 XC90 II (256) | 09.2014-12.2022 B5 Mild-Hybrid - 1969ccm, 250pk, 184kw - B 420 T2 XC90 II (256) | 09.2014-12.2022 B5 Mild-Hybrid AWD - 1969ccm, 249pk, 183kw - B 420 T10 XC90 II (256) | 09.2014-12.2022 B5 Mild-Hybrid AWD - 1969ccm, 235pk, 173kw - D 420 T2 XC90 II (256) | 09.2014-12.2022 B5 Mild-Hybrid Polestar AWD - 1969ccm, 245pk, 180kw - D 420 T2 XC90 II (256) | 09.2014-12.2022 B6 Mild Hybrid AWD - 1969ccm, 299pk, 220kw - B 420 T XC90 II (256) | 09.2014-12.2022 D4 - 1969ccm, 190pk, 140kw - D 4204 T14 XC90 II (256) | 09.2014-12.2022 D4 AWD - 1969ccm, 190pk, 140kw - D 4204 T6 XC90 II (256) | 09.2014-12.2022 D5 AWD - 1969ccm, 224pk, 165kw - D 4204 T11 XC90 II (256) | 09.2014-12.2022 D5 AWD - 1969ccm, 235pk, 173kw - D 4204 T23 XC90 II (256) | 09.2014-12.2022 D5 DRIVe Polestar AWD - 1969ccm, 239pk, 176kw - D 4204 T23 XC90 II (256) | 09.2014-12.2022 D5 Polestar AWD - 1969ccm, 240pk, 177kw - D 4204 T23 XC90 II (256) | 09.2014-12.2022 T5 AWD - 1969ccm, 249pk, 183kw - B 4204 T23 XC90 II (256) | 09.2014-12.2022 T5 AWD - 1969ccm, 254pk, 187kw - B 4204 T23 XC90 II (256) | 09.2014-12.2022 T5 AWD - 1969ccm, 250pk, 184kw - B 4204 T26 XC90 II (256) | 09.2014-12.2022 T5 Drive-E Polestar AWD - 1969ccm, 261pk, 192kw - B 4204 T23 XC90 II (256) | 09.2014-12.2022 T5 Drive-E Polestar AWD - 1969ccm, 239pk, 176kw - B 4204 T26 XC90 II (256) | 09.2014-12.2022 T5 Polestar AWD - 1969ccm, 253pk, 186kw - B 4204 T26P XC90 II (256) | 09.2014-12.2022 T6 AWD - 1969ccm, 320pk, 235kw - B 4204 T27 XC90 II (256) | 09.2014-12.2022 T6 AWD - 1969ccm, 310pk, 228kw - B 4204 T29 XC90 II (256) | 09.2014-12.2022 T6 Polestar AWD - 1969ccm, 334pk, 246kw - B 4204 T27 XC90 II (256) | 09.2014-12.2022 T6 Polestar AWD - 1969ccm, 326pk, 240kw - B 4204 T29P XC90 II (256) | 09.2014-12.2022 T8 Hybrid AWD - 1969ccm, 407pk, 299kw - B 420 T16, B 4204 T16 XC90 II (256) | 09.2014-12.2022 T8 Hybrid AWD - 1969ccm, 405pk, 298kw - B 4204 T35 XC90 II (256) | 09.2014-12.2022 T8 Hybrid AWD - 1969ccm, 407pk, 299kw - B 4204 T35, B 4204 T28, B1APHEV XC90 II (256) | 09.2014-12.2022 T8 Hybrid Polestar AWD - 1969ccm, 317pk, 233kw - B 4204 T34 XC90 II (256) | 09.2014-12.2022 T8 Hybrid Polestar AWD - 1969ccm, 421pk, 310kw - B 4204 T35, B 4204 T39 XC90 II (256) | 09.2014-12.2022 T8 Plug-in Hybrid AWD - 1969ccm, 455pk, 335kw - B 4204 T56, TZ220XS109 XC90 II (256) | 09.2014-12.2022 T8 Plug-in Hybrid Polestar AWD - 1969ccm, 334pk, 246kw - B 4204 T35 XC90 II (256) | 09.2014-12.2022 T8 Twin Engine AWD - 1969ccm, 390pk, 287kw - B 4204 T34 -
