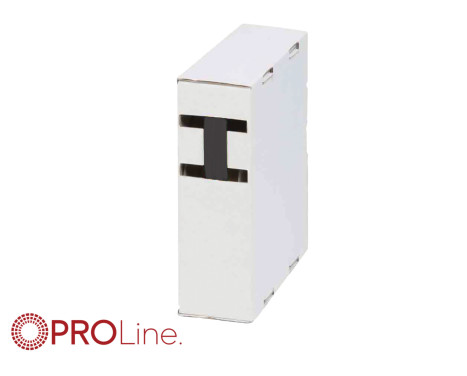

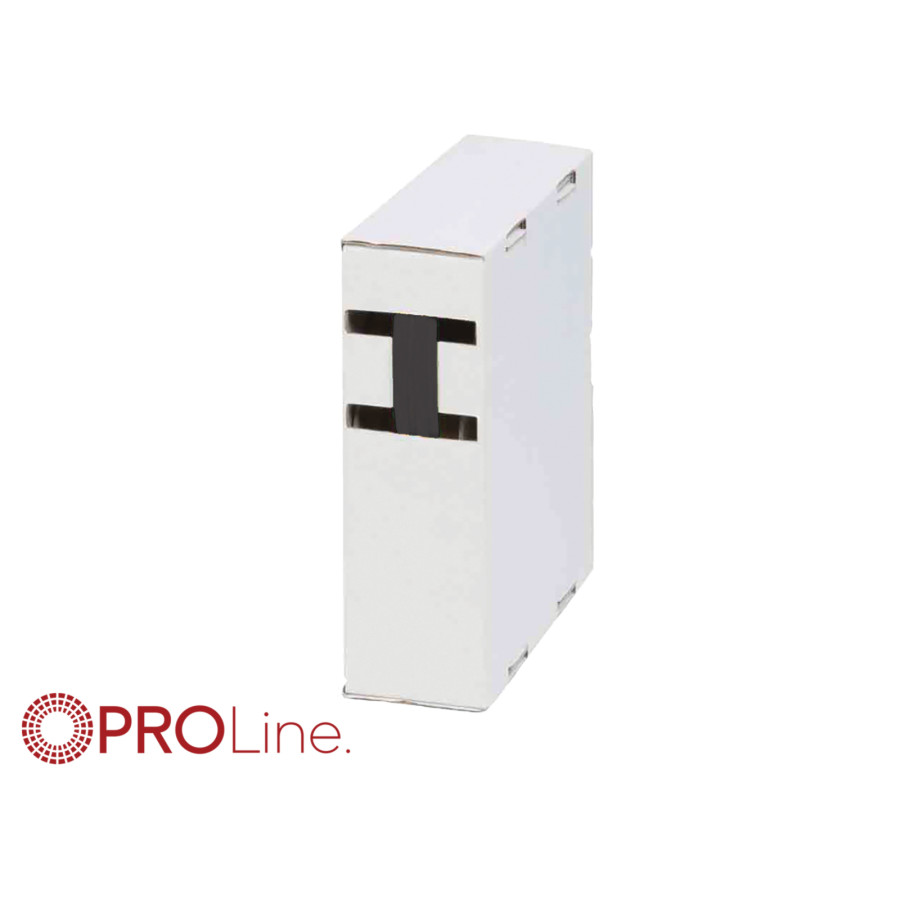

heat shrink tube shrink ratio 2: 1 in box, 11 mtr, 6.5mm / 3.0mm

UL-certified and IATF16949-certified polyolefin heat shrink tubing for insulation,
bundling and protecting wires and cable connections against wear, moisture and many
chemicals.

It offers reliable electrical and corrosion-resistant insulation with high mechanical
strength for cables in vehicle construction, switch cabinet and electrical system construction,
cable assembly and machine building.

Remark:
avoid local overheating of the heat shrink tubing

Application:
cable diameter: Ø 0.63 cm
cable diameter: Ø 1/4 inch
color: black

Technical specifications:
material: halogen-free polyolefin
shrinkage ratio: 2:1
diameter before shrinkage: Ø 6.5 mm +/- 0.2 mm
diameter after shrinkage: Ø 3.0 mm
operating temperature: -55 °C > 125 °C
shrinkage temperature: min. 70 °C
Shrinkage temperature: 120 °C

tensile strength at room temperature: 12 MPa
Tensile strength after aging: 10.4 MPa 158 °C/168 hours
Elongation at break at room temperature: 400%
Elongation at break after aging: 300% 158 °C/168 hours
temperature flexibility: +250 °C/4 hours ASTM D2671
Low temperature flexibility: -55 °C/4 hours UL224
longitudinal shrinkage: < 5%
flammability: VW-1
dielectric strength: 1>25 kV/mm
voltage resistance: 2.5 kV/1 minute
voltage resistance after aging: 1/2 x 2.5 kV/1 minute
volume resistance: 1x10/14 Ohm.cm min.
Corrosion: 158 °C / 68 hours
Complies with REACH and RoHS
ISO9001
IATF16949
UL certified
CE certified
Contents:
10 meters

Suitable for:
Heat shrink tubing

---

Warranty

2 years
